Sliding Doors

Visoglide Plus

Visoglide Plus offers the same contemporary styling and robust performance associated with the system whilst delivering superior thermal performance.

Product Details

  • Material
    Aluminium Polyamide
  • Dual Colour
    Yes
  • Thermally Broken
    Yes
  • NBS Available
    Yes
  • U Value
    1.6W/m²K using 1.0 W/m²K centre pane
  • Doc L Compliant
    Yes
  • BS6375-1:2009
    Yes

Description

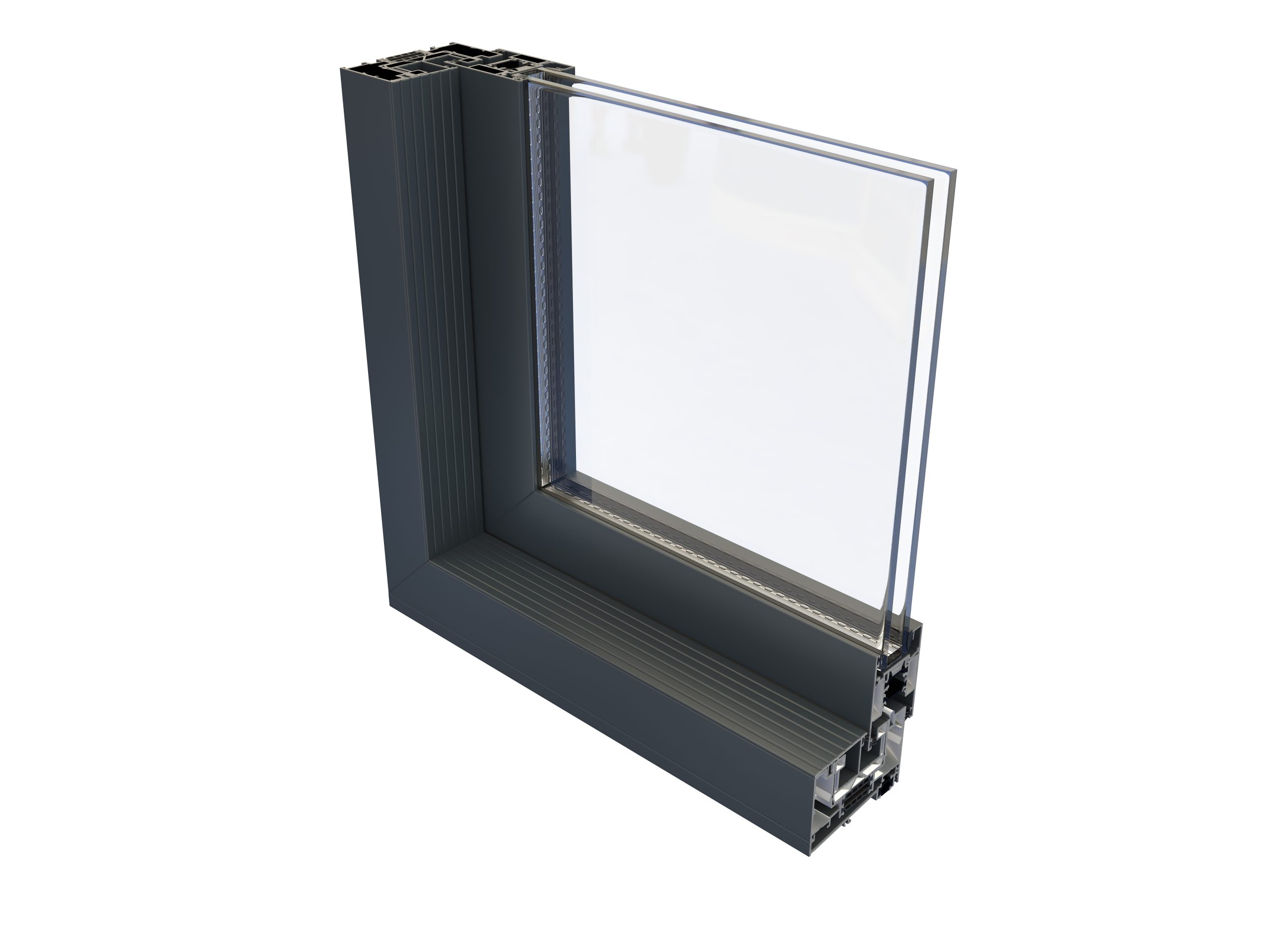

This adaptable system is suitable for use as either sliding commercial entrances where large opening apertures are required, or as dynamic residential sliding doors that maximise light and give stunning unimpeded views. Visoglide Plus profiles have been designed to improve both strength and weather resistance. All main sections feature an extended polyamide thermal break that allows Visoglide Plus to achieve a U Value of 1.6 W/m²K when installed with a suitable sealed unit.

Visoglide Plus doors are available in both single and dual colour in wide choice of standard and non-standard finishes including Smart’s unique Sensations range of textured colours. The system is also suitable for use with auto slide opening mechanisms (sold seperately).

  • Inline sliding or lift & slide options
  • Slim interlock option
  • Colour matched accessories now available speak with your supplier for details
  • British Standard Kitemarked system achieving: KM 530838 PAS 24:2012

Dimensions

  • Sliding Door Max Width

    Within height & weight limitations

  • Sliding Door Max Height

    2500mm (Sash)

  • Sliding Door Max Weight

    250kg

  • Glazing

    up to 38mm double or triple glazed units

  • Frame Depth

    118mm (2 track), 183mm (3 track)

  • Typical Sightlines

    35mm or 83mm

More Info

Downloads

  • Visoglide Plus Slim Interlock

  • Visoglide Plus Slim Interlock

  • Visoglide Plus Sliding Doors
