Visofold 6000

Bi-folding Doors

Overview

Visofold 6000’s flexibility makes it suitable for both commercial and residential projects where large opening apertures are required, with the system maximising light and space to give unimpeded views.

This highly-versatile, easy-to-operate system is the perfect option for even the largest project, capable of opening up an entire wall, yet presenting a contemporary, elegant glazed façade when closed.

Product Details

  • Material
    Aluminium Polyamide
  • Dual Colour
    Yes
  • Thermally Broken
    Yes
  • NBS Available
    Yes
  • U Value
    1.5W/m²K using 1.0 W/m²K centre pane
  • Doc L Compliant
    Yes
  • BS6375-1:2009
    Yes

Description

With high-security glazing, robust locking mechanisms (including multi-point locks on the main opening sashes, and shoot-bolts on the floating mullions), an unrivalled colour range and the option of colour-matched accessories, the system can be tailored to meet each project’s specific requirements.

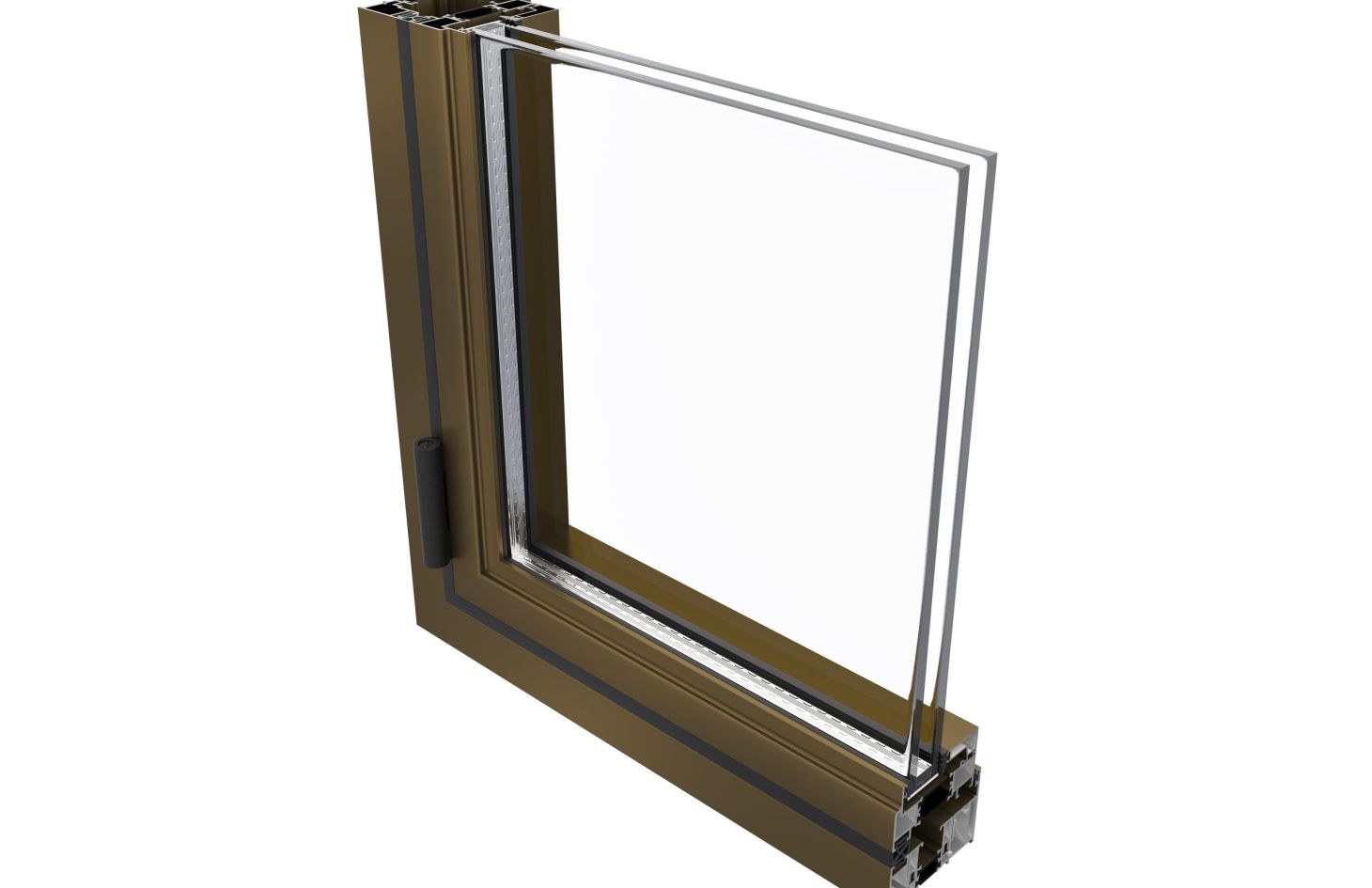

Delivering the perfect combination of strength and performance, Visofold 6000 profiles feature a polyamide thermal break that enhances the system’s thermal performance as well as resistance. Fully compliant with the requirements of Building Regulations Document L 2010, the doors have the option of either recessed thresholds for unimpeded, easy access, or rebated thresholds that offer improved weather resistance.

The system features a choice of internally or externally folding sashes, which when open, sit flush to the frame. Sashes are hung from a floating mullion and slide on a recessed bottom roller and top guide, which allow ultra-slim profiles, smooth operation and robust security.

Dimensions

  • Slide Folding Door Max Width (mm)

    1000mm

  • Slide Folding Door Max Height (mm)

    2200mm

  • Slide Folding Door Max Weight (kg)

    100kg

  • Glazing (mm)

    24mm, 28mm, 32mm or 40mm double or triple glazed units

  • Frame Depth (mm)

    76mm or 82mm

  • Typical Sightlines (mm)

    94mm

Downloads

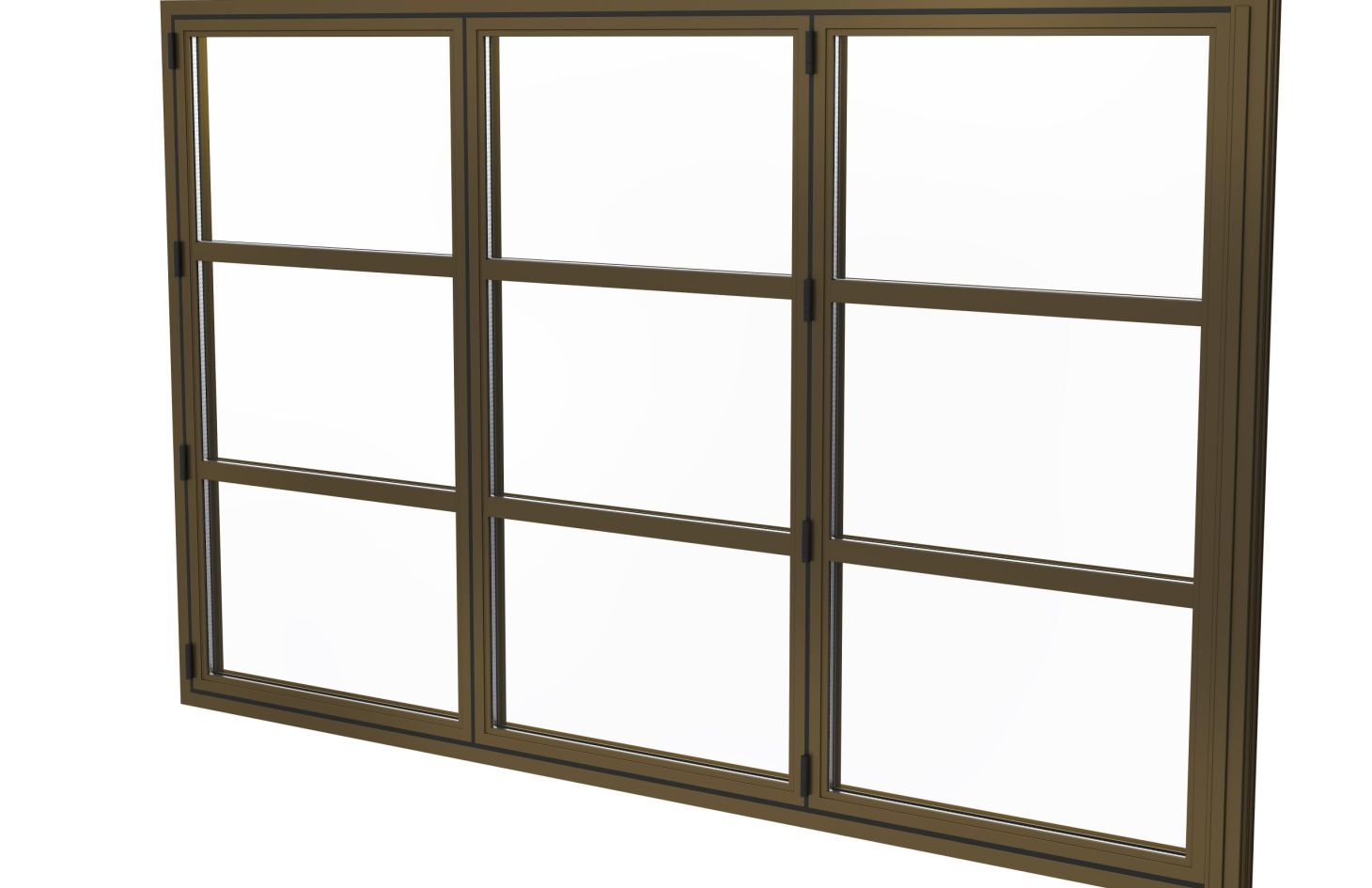

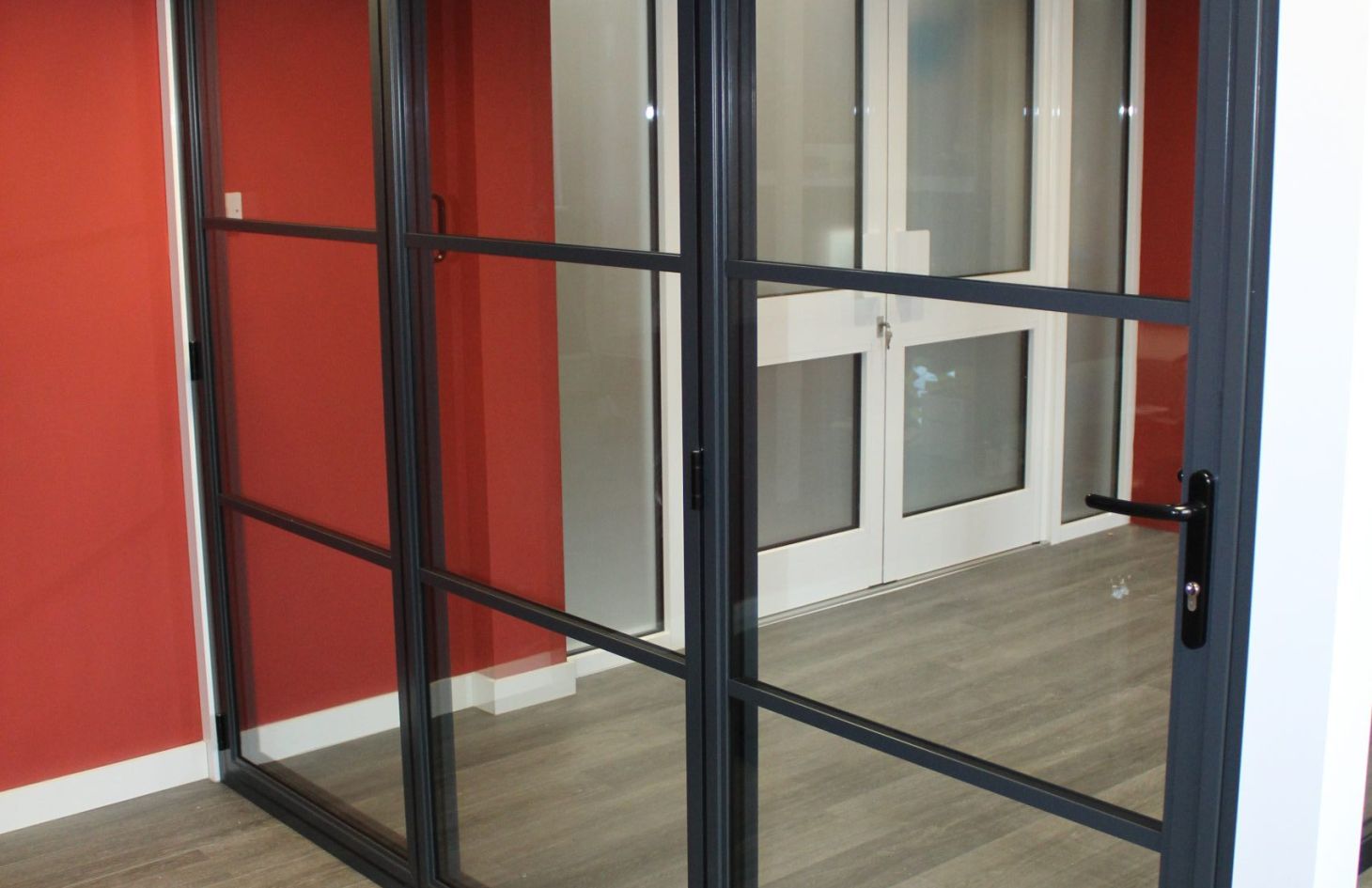

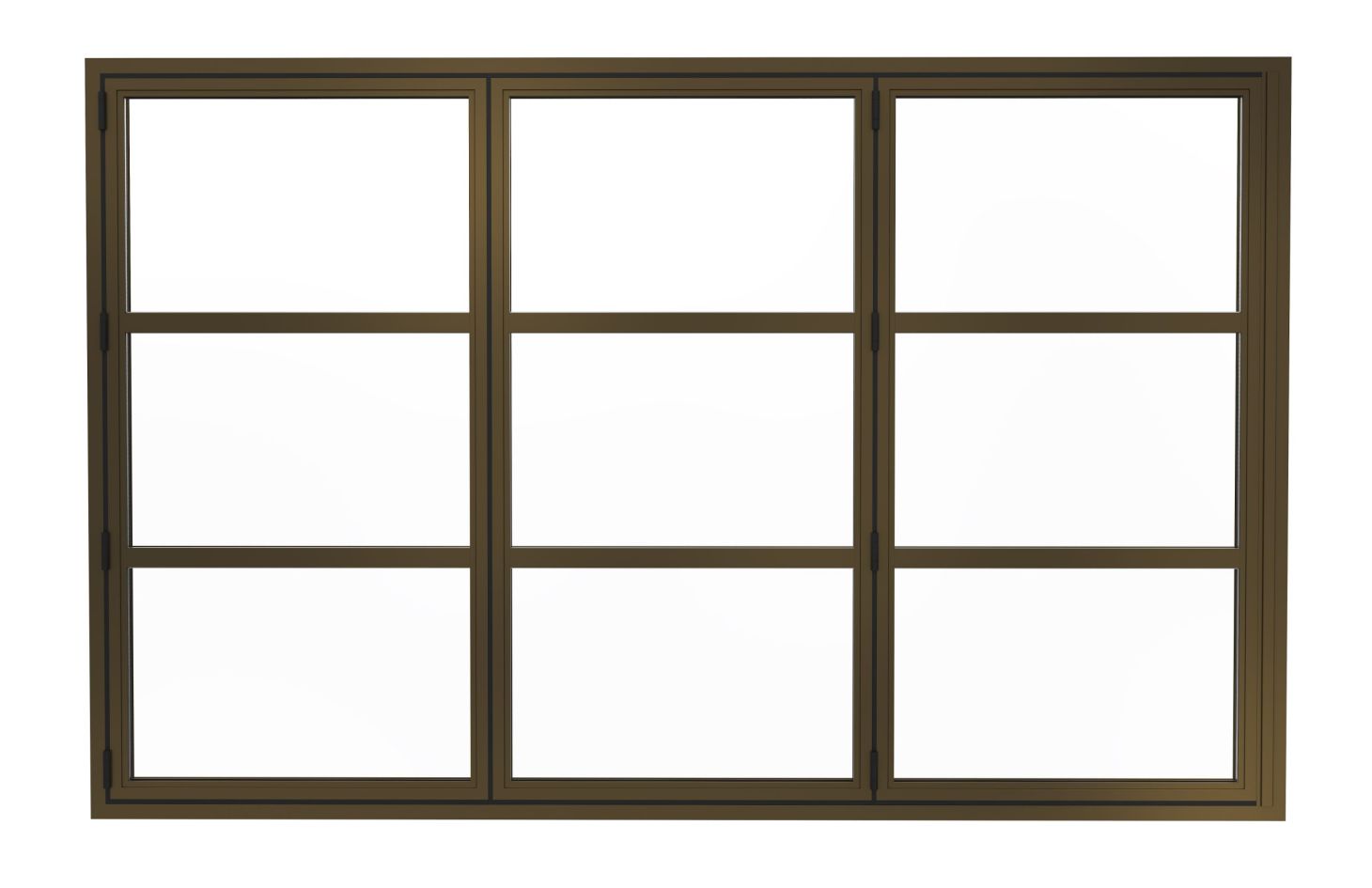

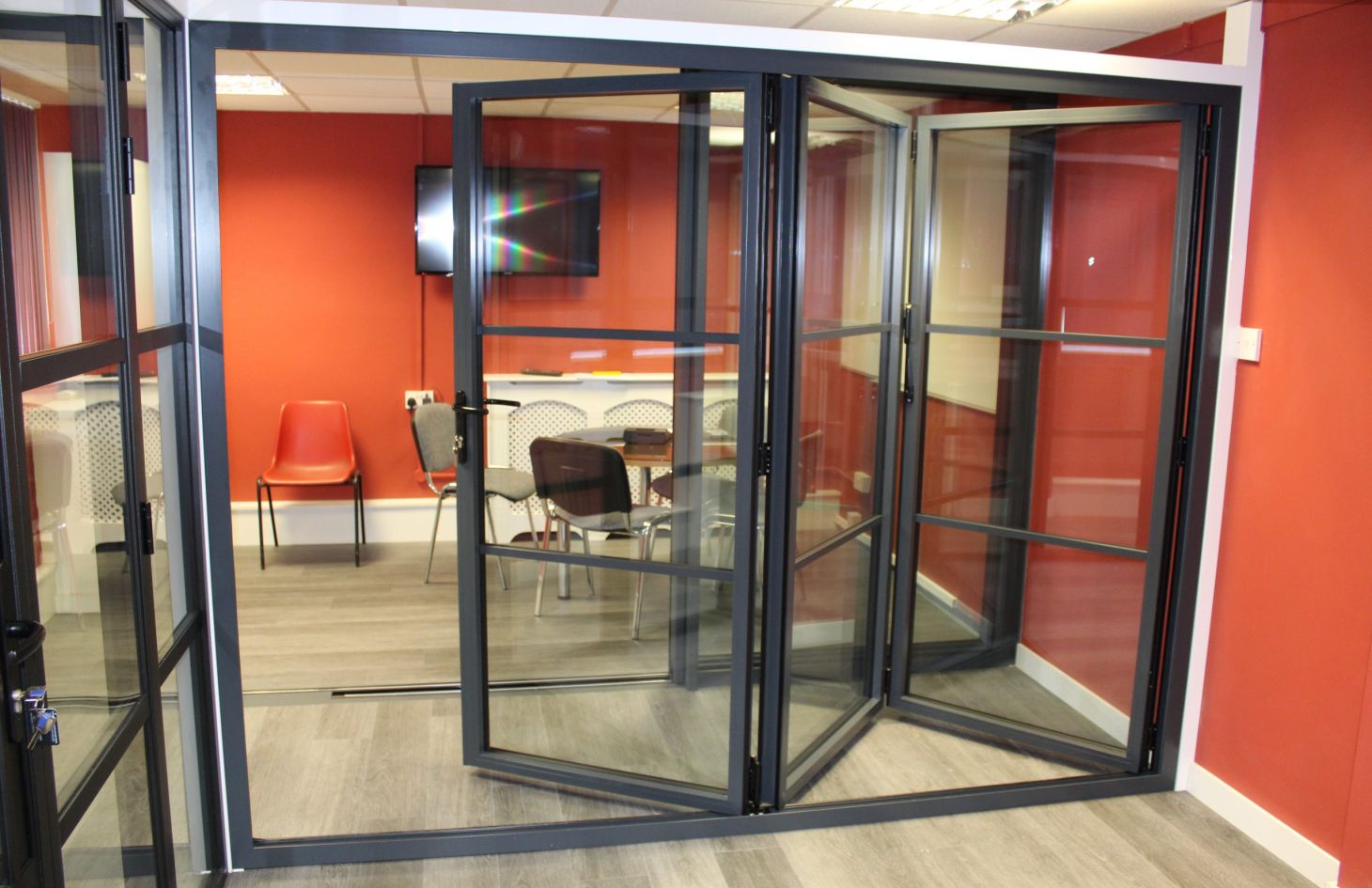

  • Heritage Bifold Door Example Profiles

  • Heritage Bifold Door Example Profiles

  • Heritage Bifold Door Example Profiles

  • Heritage Bifold Door Example Profiles

  • Heritage Bifold Door Example Profiles

  • Heritage Bifold Door Example Profiles

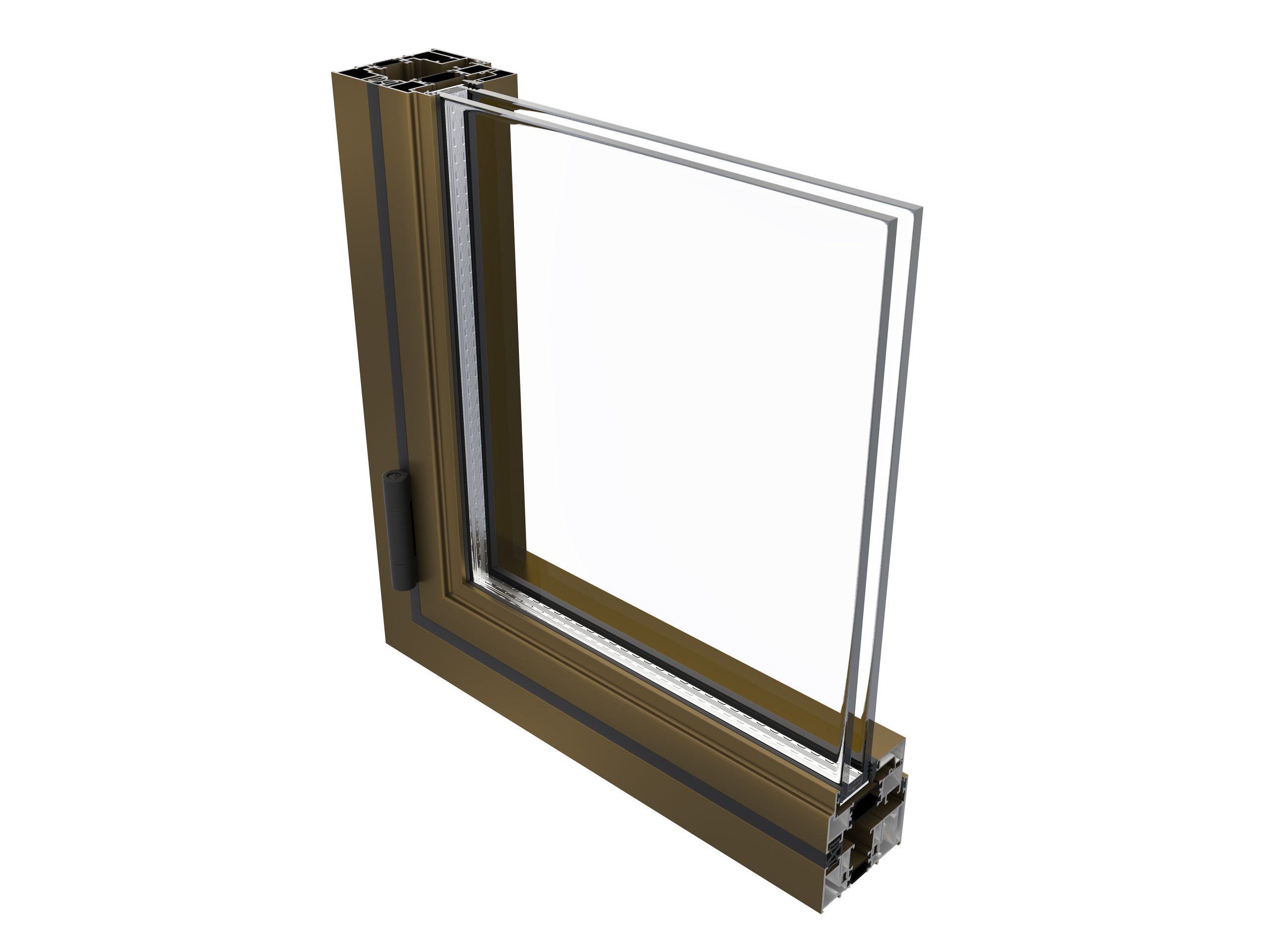

  • Slim Sightlines

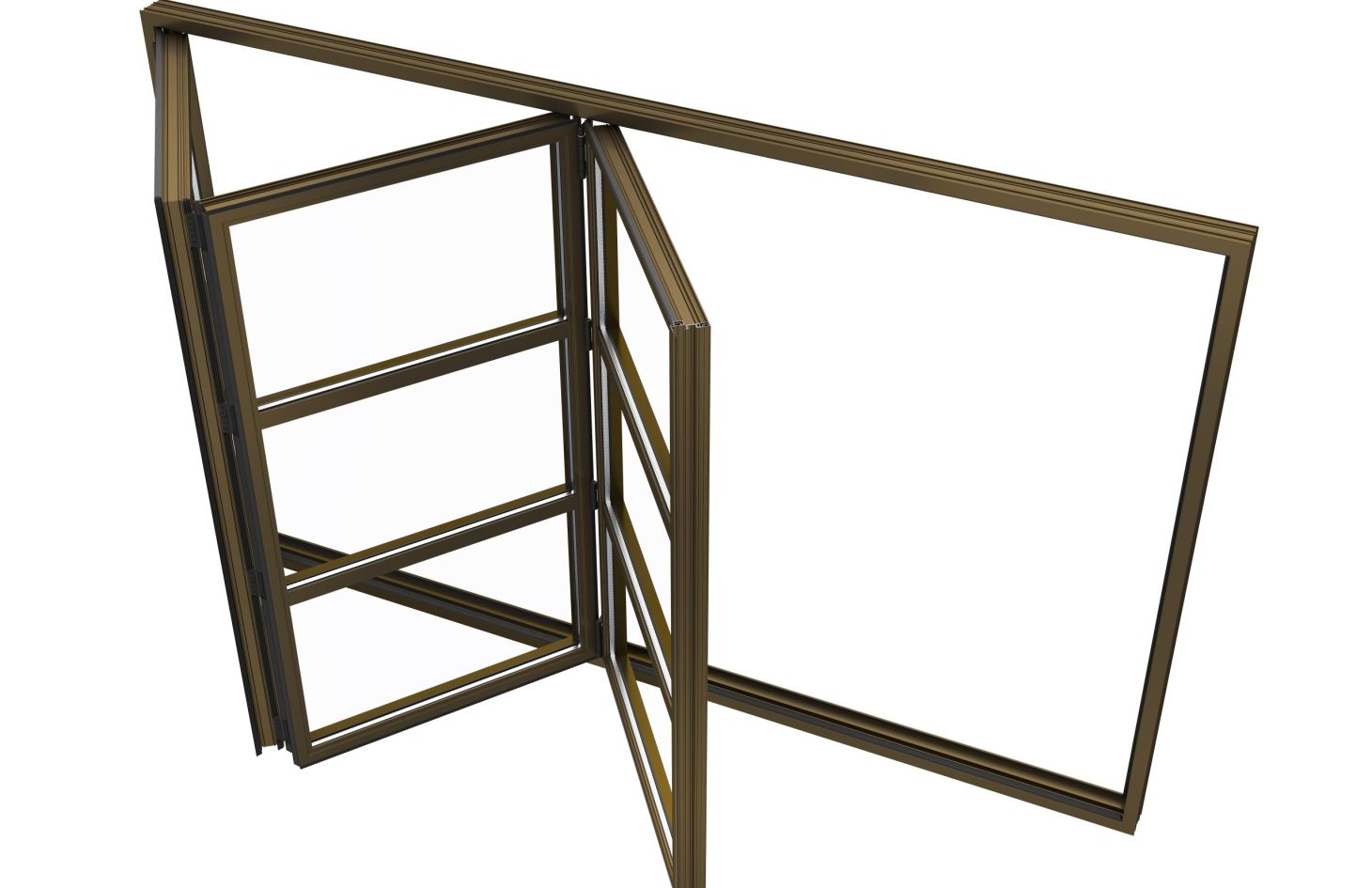

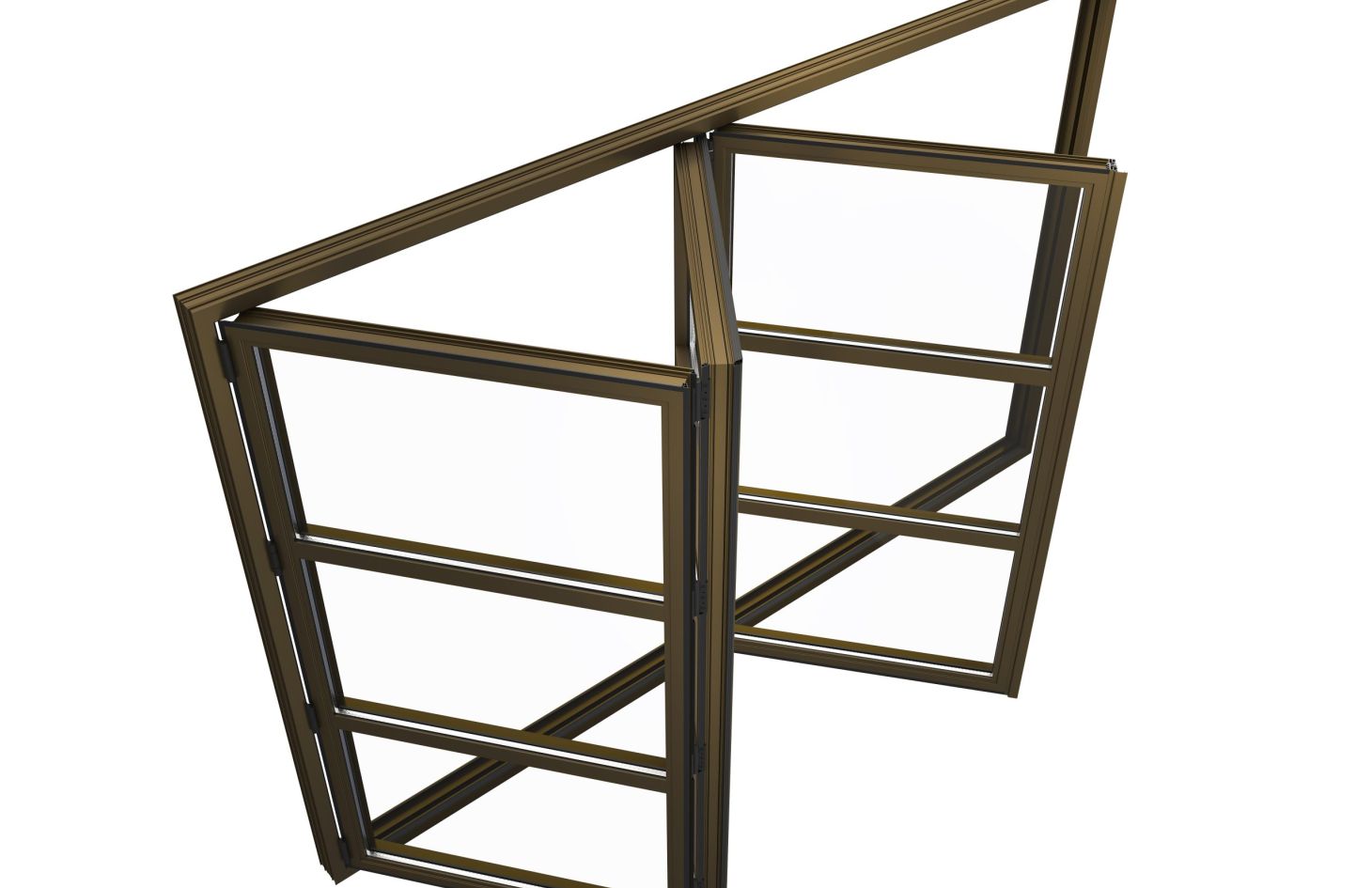

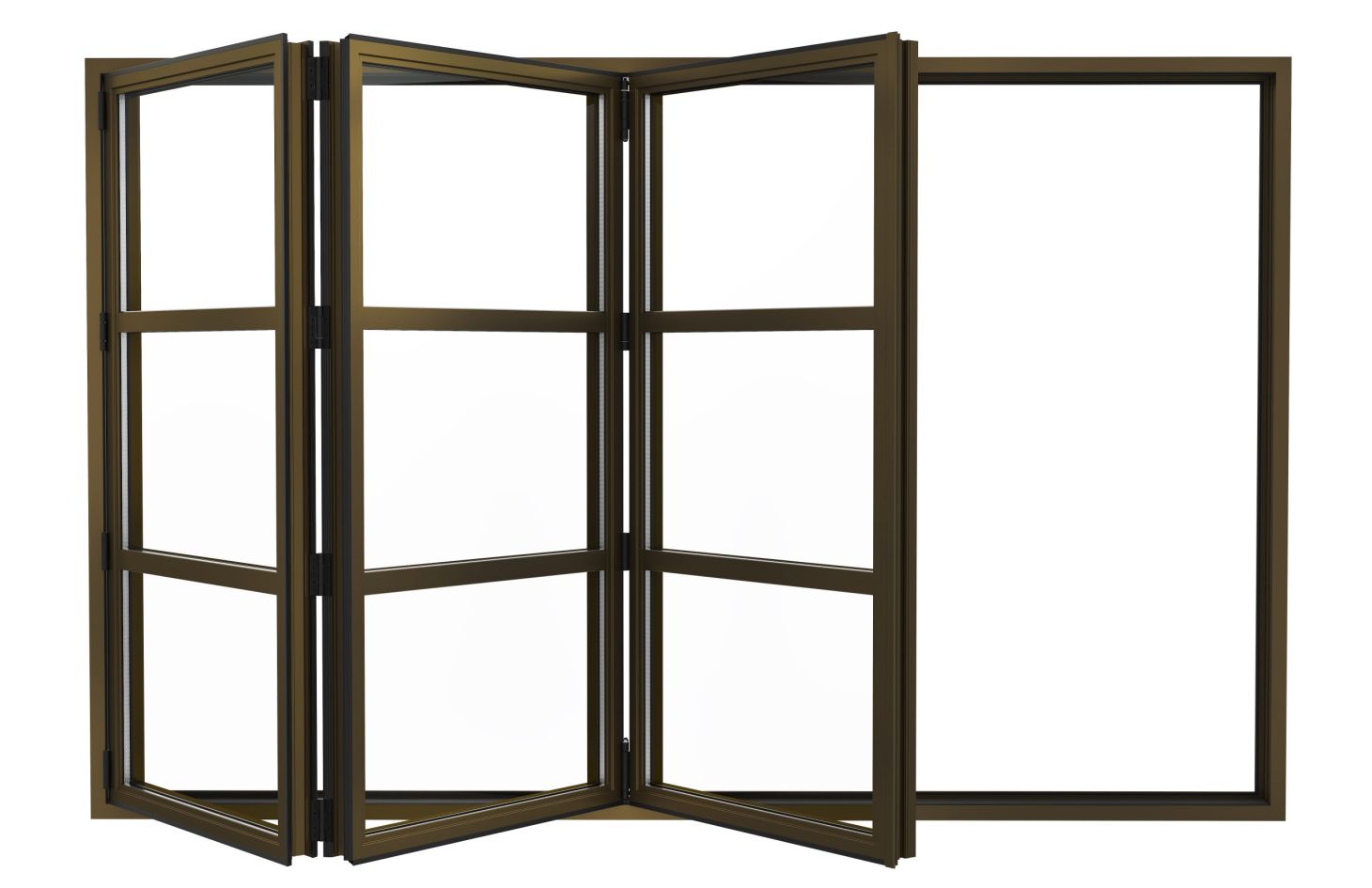

  • Stacking

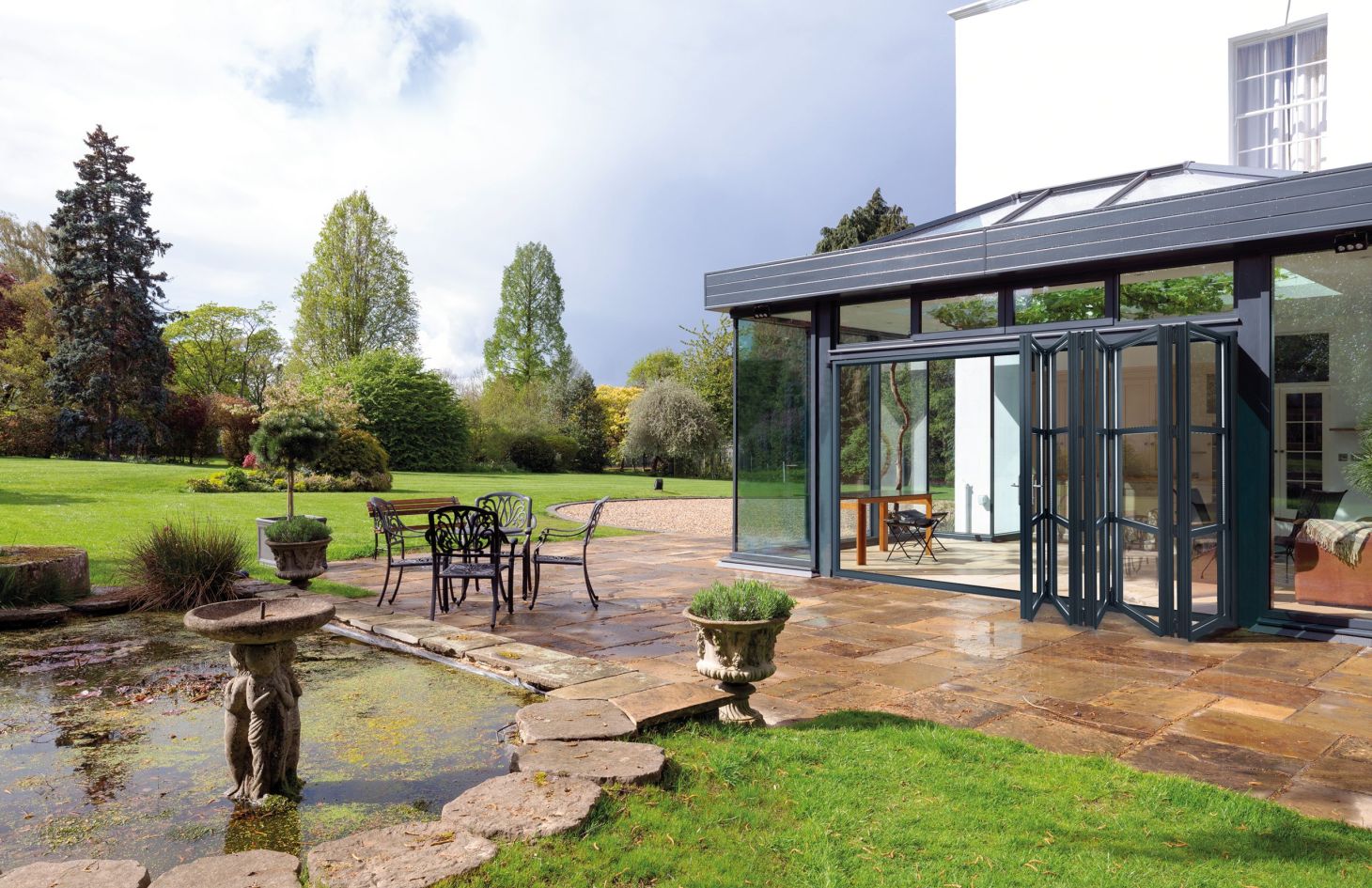

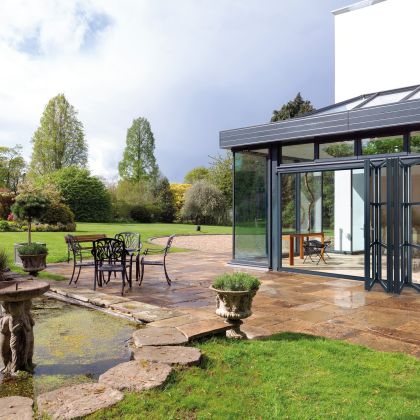

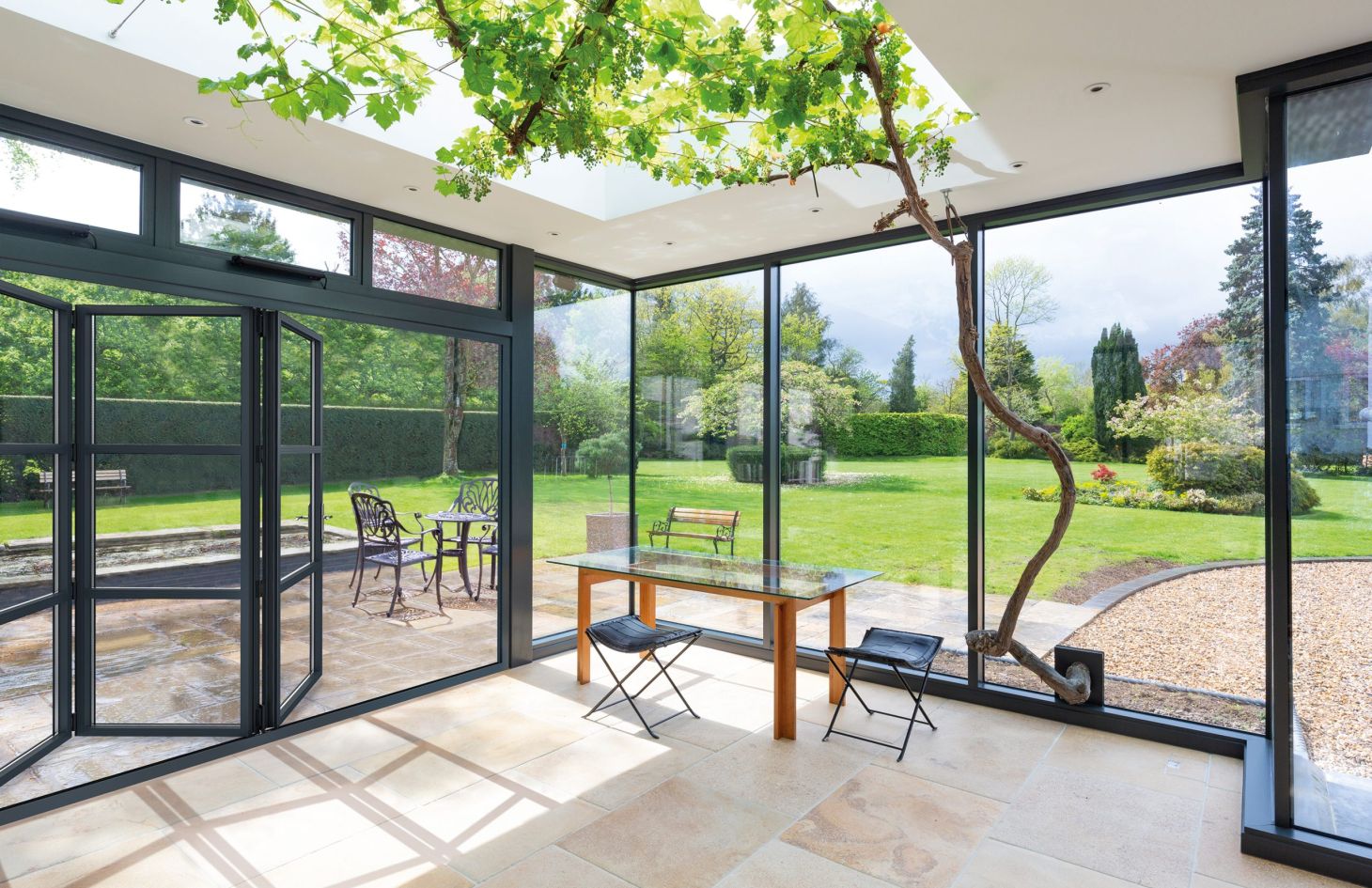

  • External View
