Alitherm Heritage

Windows & Doors

Alitherm Heritage Doors with Island Lockblock

Heritage Doors & Windows

Our slimline Heritage Aluminium Window and Door system is a great alternative to costly steel windows and doors. The same industrial or heritage look can be achieved but with far superior thermal values.

The Heritage system provides the ideal solution for heritage applications such as listed building renovations and large scale replica-refurbishment projects where planning constraints are to be considered.

The window and door system is designed to be built as a series of horizontal modules which can be stacked using horizontal couplers to form a multi-part window or screen featuring a specially designed drip bar between modules.

We offer a range of transom options from the standard fixed transom to Fenstra Overlap Astragal Bars with Floating (Island) Lockblocks.

Product Details

  • Material
    Aluminium Polyamide
  • Dual Colour
    Yes
  • Thermally Broken
    Yes
  • NBS Available
    Yes
  • WER rating
    B
  • U Value
    1.5W/m²K using 1.0 W/m²K centre pane
  • Doc L Compliant
    Yes
  • BS6375-1:2009
    Yes
  • BS4873
    Yes

Description

Alitherm Heritage profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.

Alitherm Heritage products are available in a choice of standard or non-standard colours, including metallic, dual colour, Smart’s Sensations textured, and Alchemy anodised effect finishes.

Please note, Alitherm Heritage has been tested to PAS 24: 2016 for casement windows and fixed lights only.

Alitherm Heritage Window: Design Limitation and Performance

  • Security tested to PAS 24:2016 (casement windows & fixed lights only)
  • Weather tested to BS 6375 Part 1:2009
  • British Standard Kitemark KM 81543
  • British Standard Kitemark KM 81580
  • Fixed windows,tilt turn, side hung or top hung open out casements
  • Polyamide thermal break provides enhanced thermal performance
  • Designed as a direct replacement for steel windows
  • Single or dual colour, marine quality polyester powder coat as standard
  • 316 Marine Grade Stainless Steel Hardware options
  • Heritage and Art Deco hardware options

Special Hardware Options

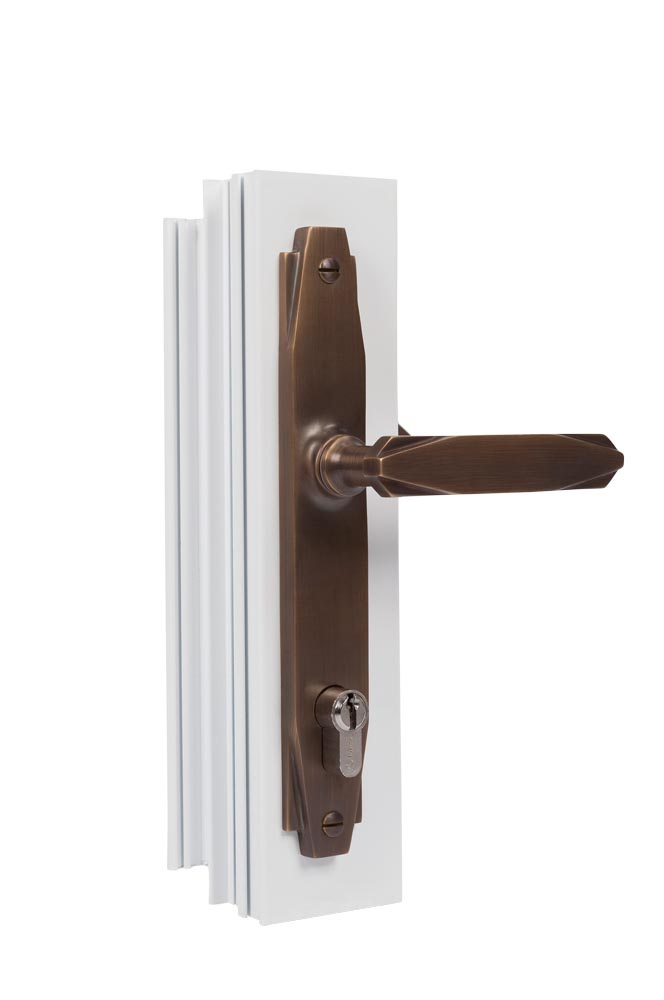

Art Deco Door Handle

Art Deco Window Handle

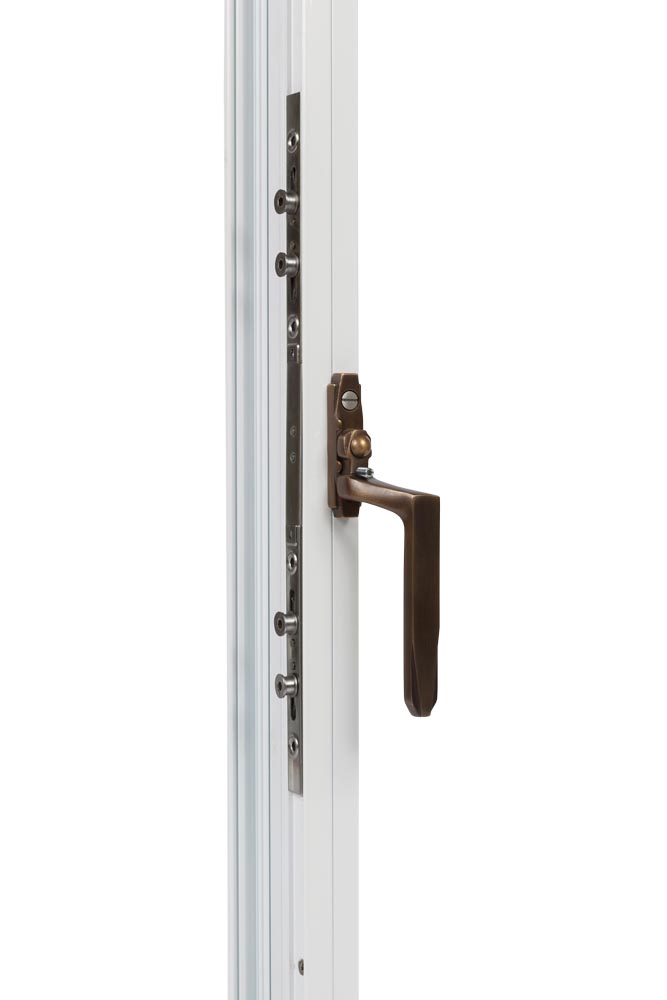

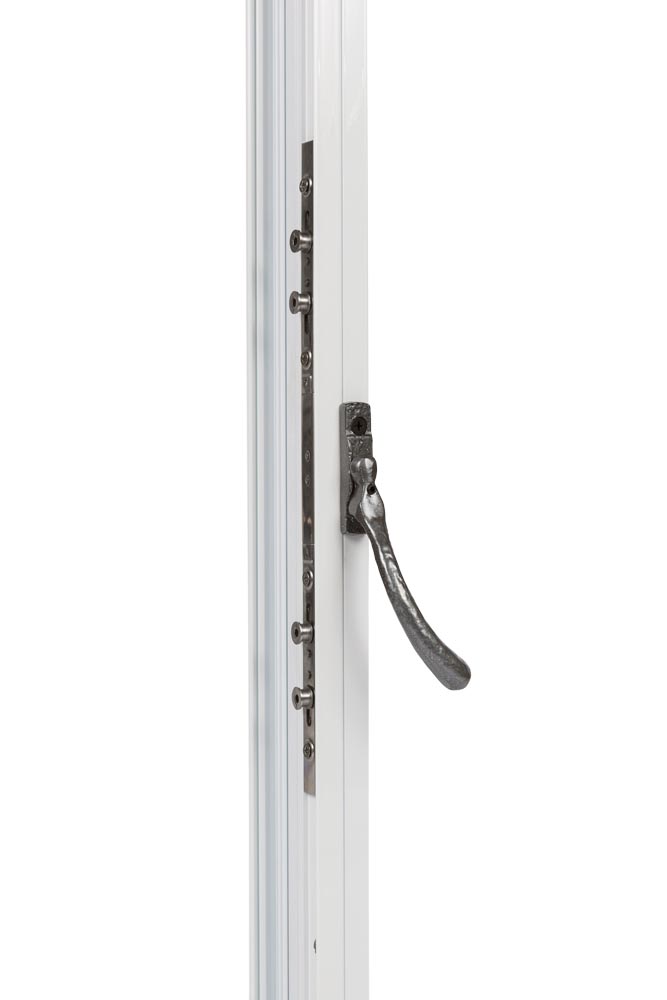

Monkey Tail Window Handle

Bulb End Window Handle

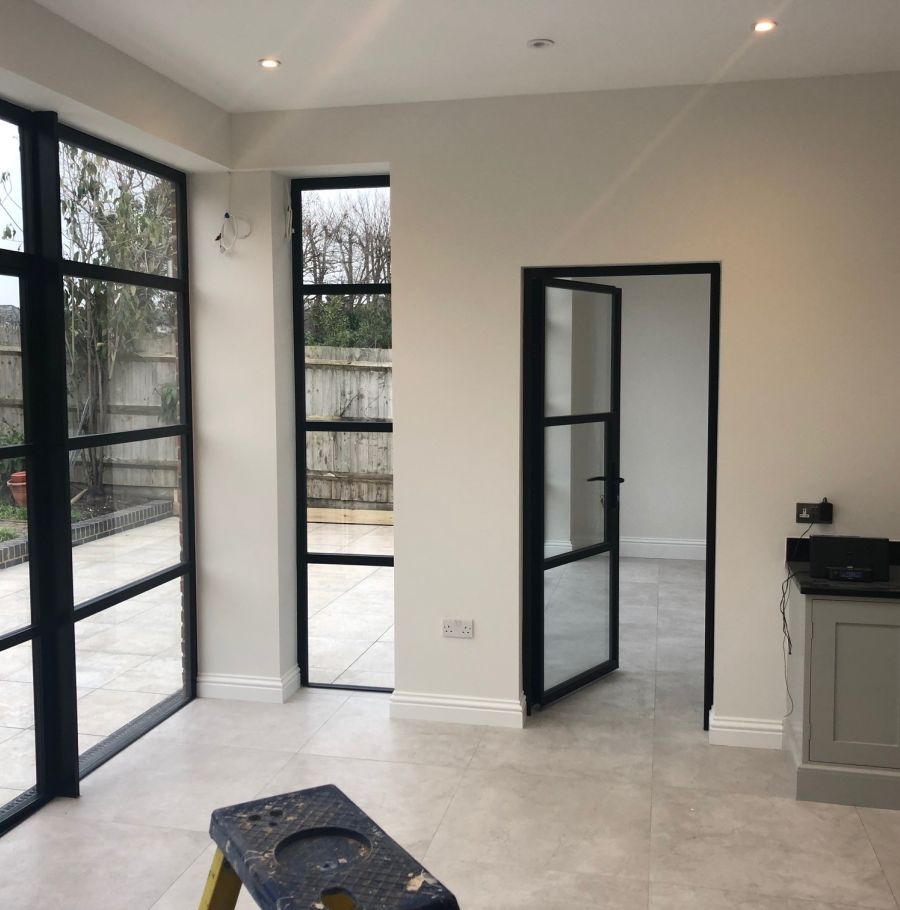

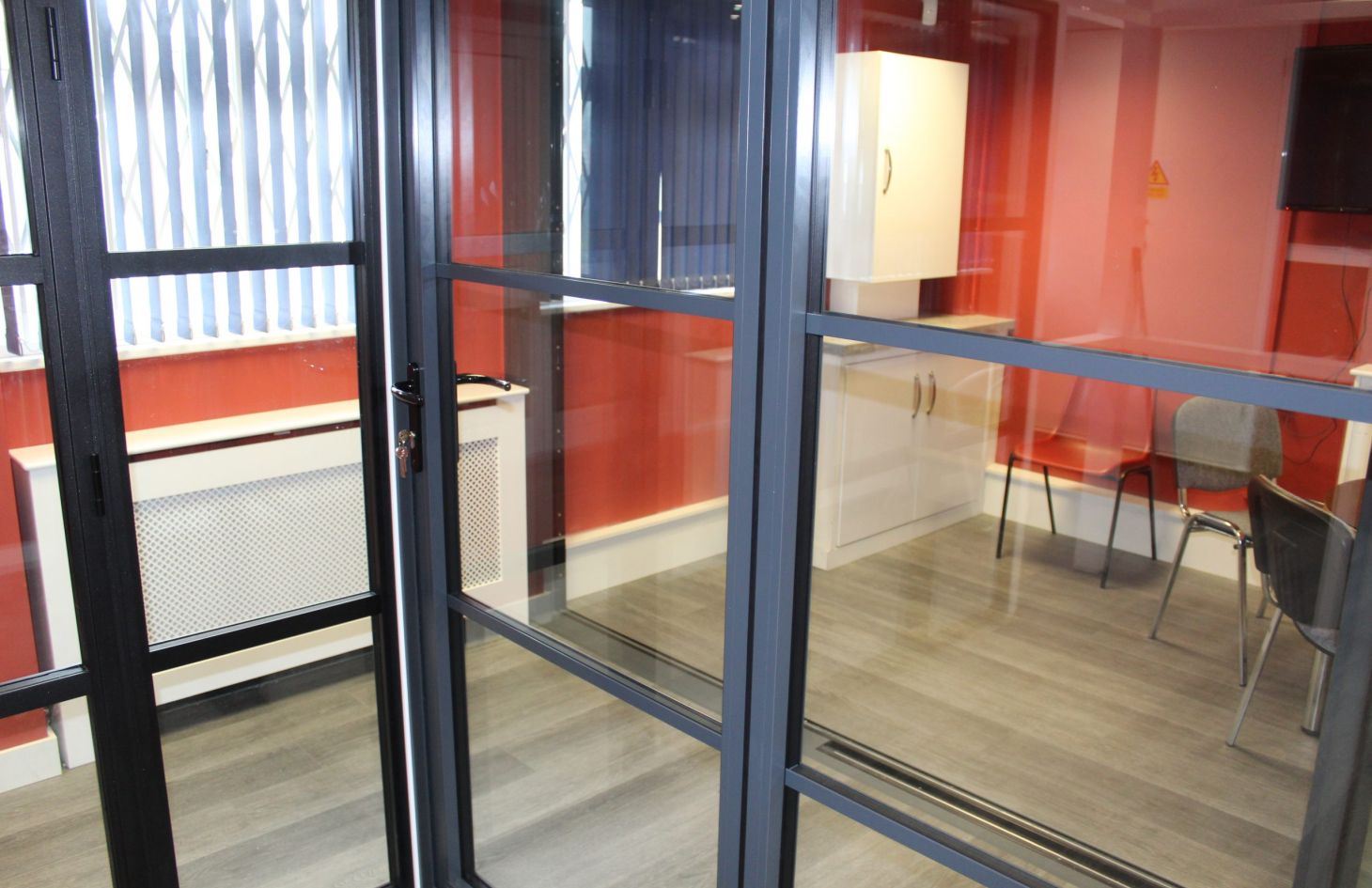

Internal Aluminium Heritage Door

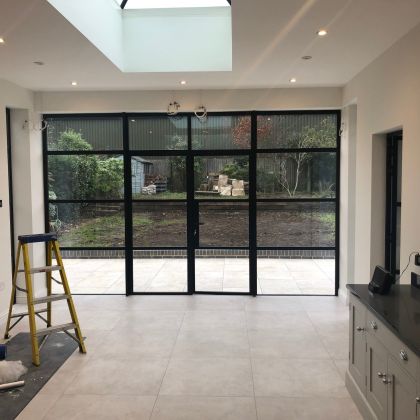

Black Heritage Aluminium Doors

Black Heritage Aluminium Doors

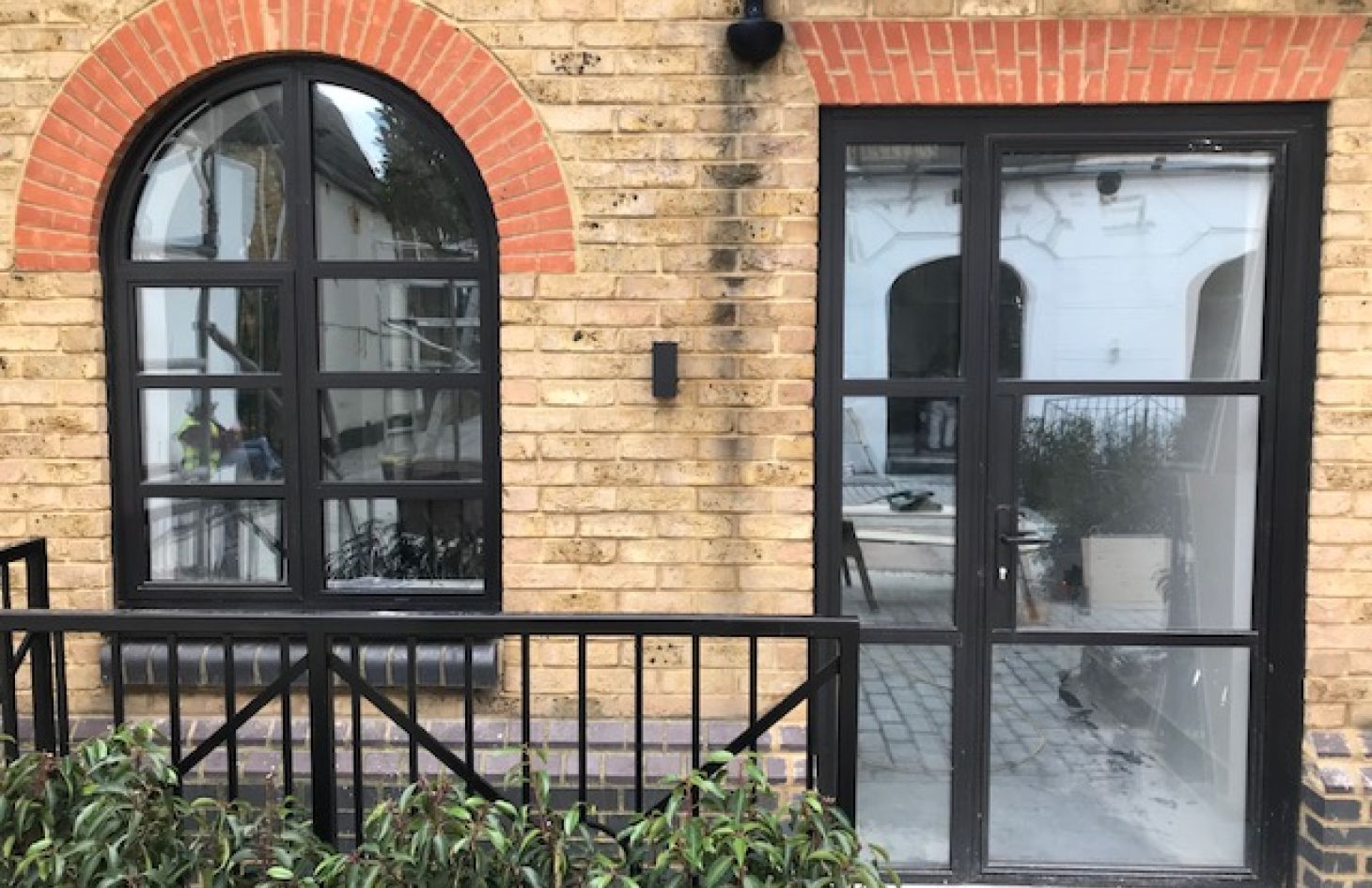

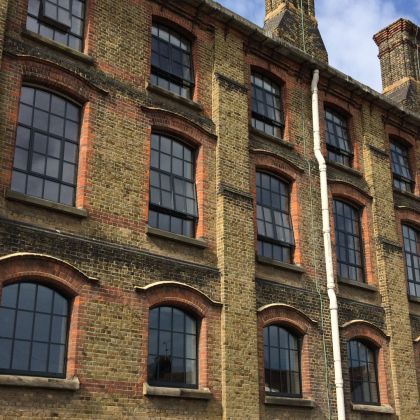

Heritage Curved Head Windows

Heritage Curved Head Windows

Dimensions

  • Side Hung Max Width

    600mm

  • Side Hung Max Height

    1400mm

  • Top Hung Max Width

    1400mm

  • Top Hung Max Height

    1400mm

  • Fixed Max Width

    2100mm

  • Fixed Max Height

    2100mm

  • Single Door Max Width

    900mm

  • Single Door Max Height

    2100mm

  • Glazing

    24, 28, 32 & 36 double or triple glazed units

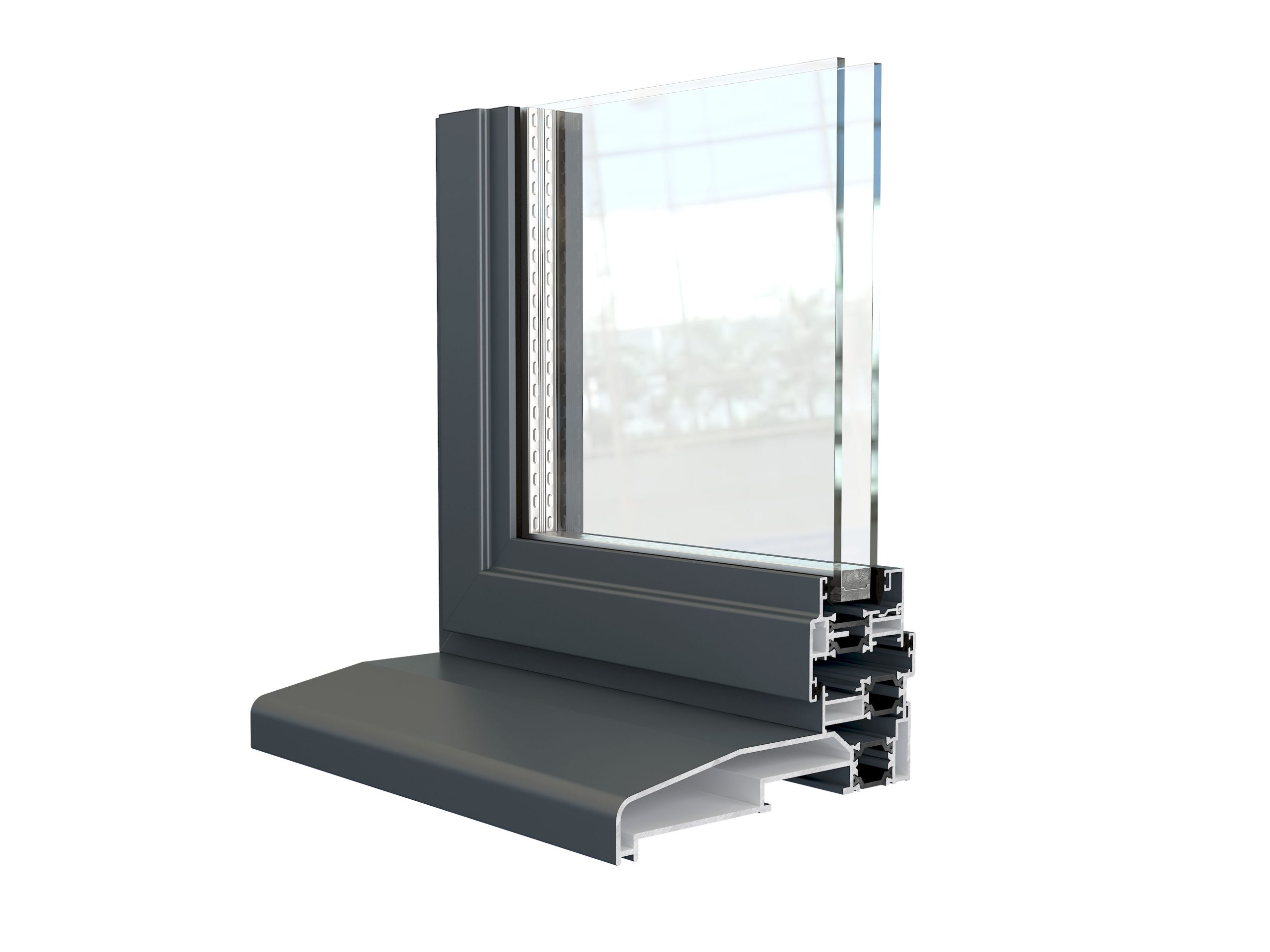

  • Frame Depth

    47mm

  • Typical Sightlines

    59mm

Downloads

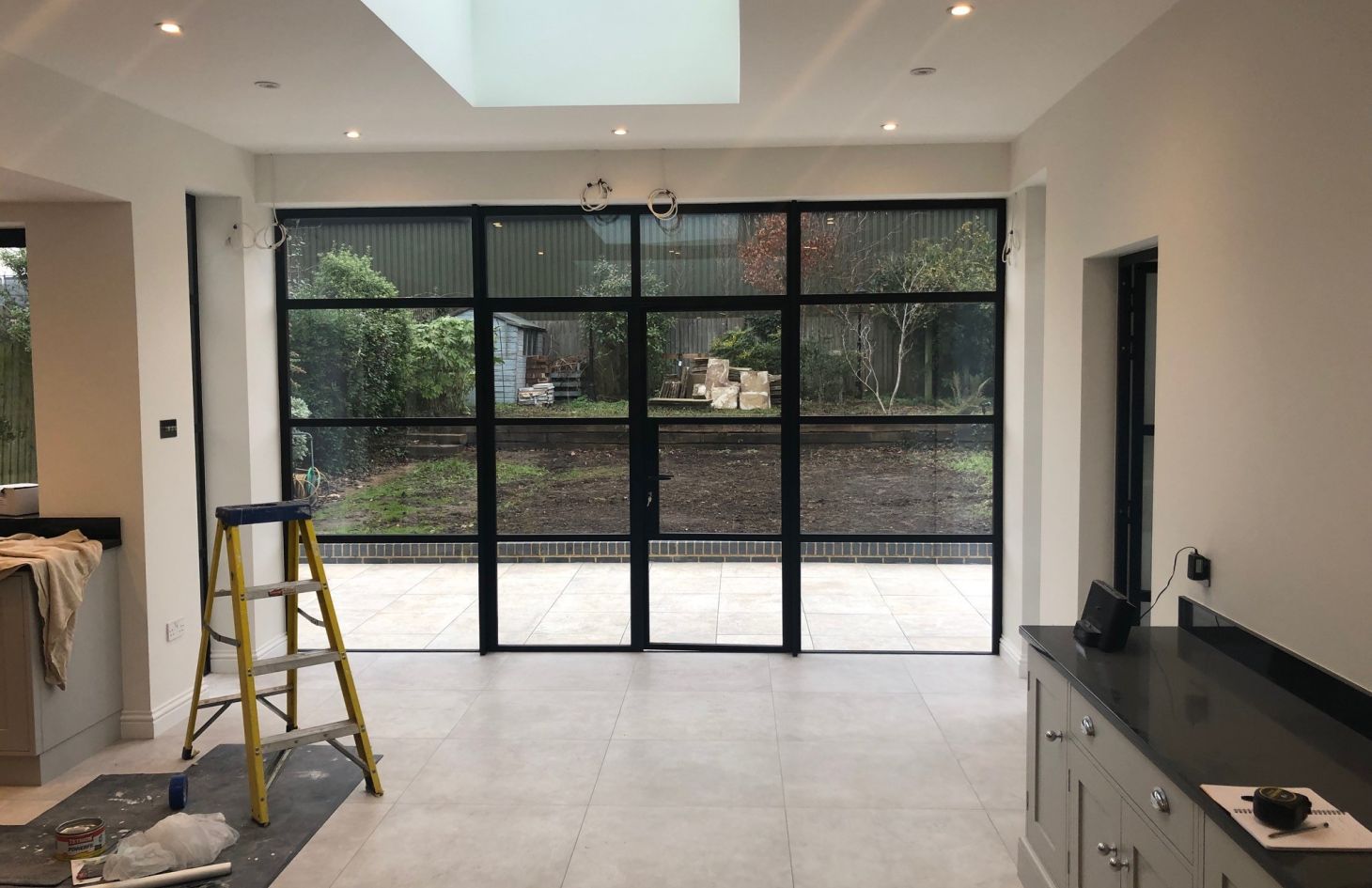

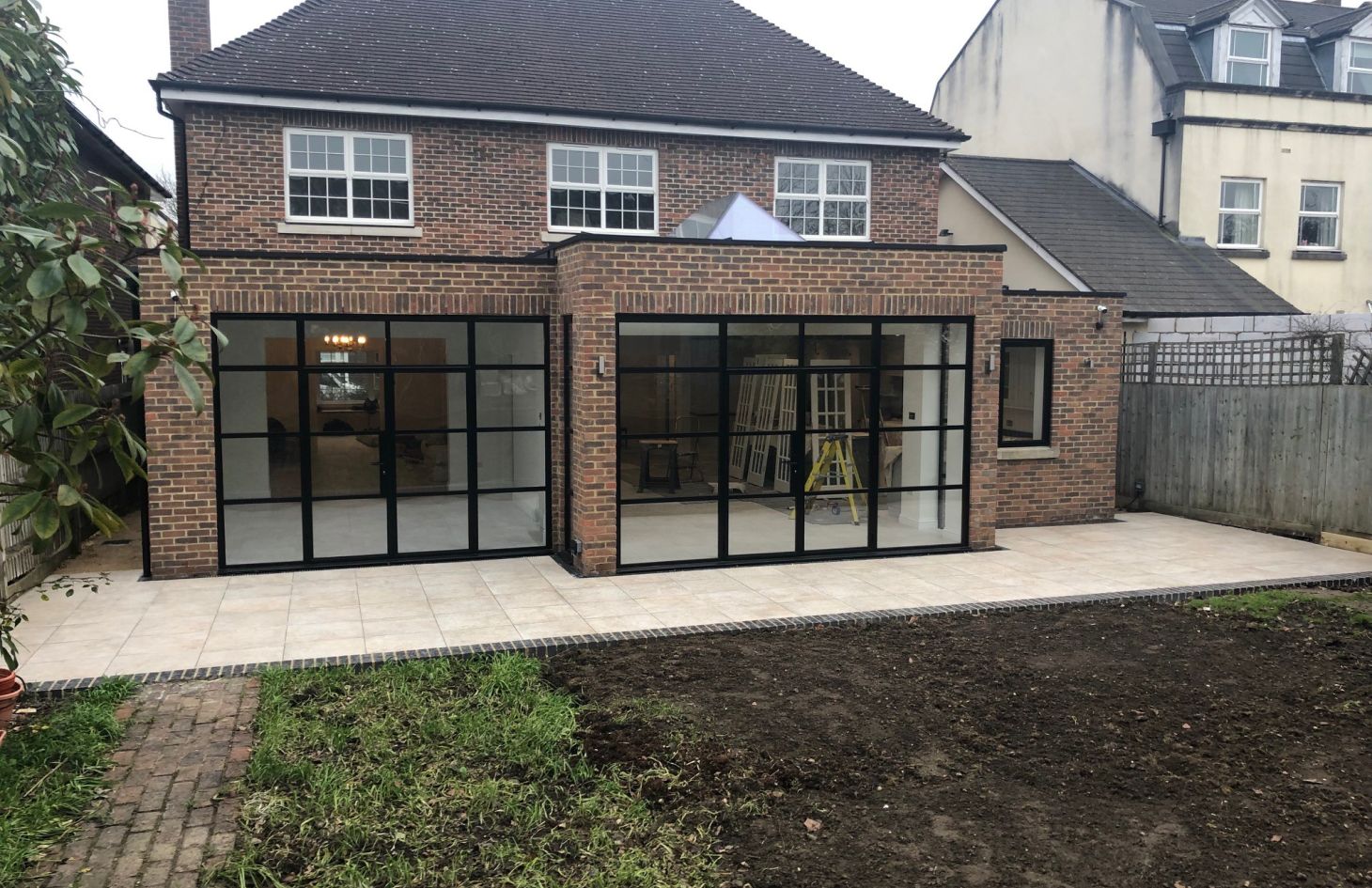

  • Smart Systems Alitherm Heritage Doors and Screens

    Smart Systems Alitherm Heritage Doors and Screens

  • Smart Systems Alitherm Heritage Doors and Screens

    Smart Systems Alitherm Heritage Doors and Screens

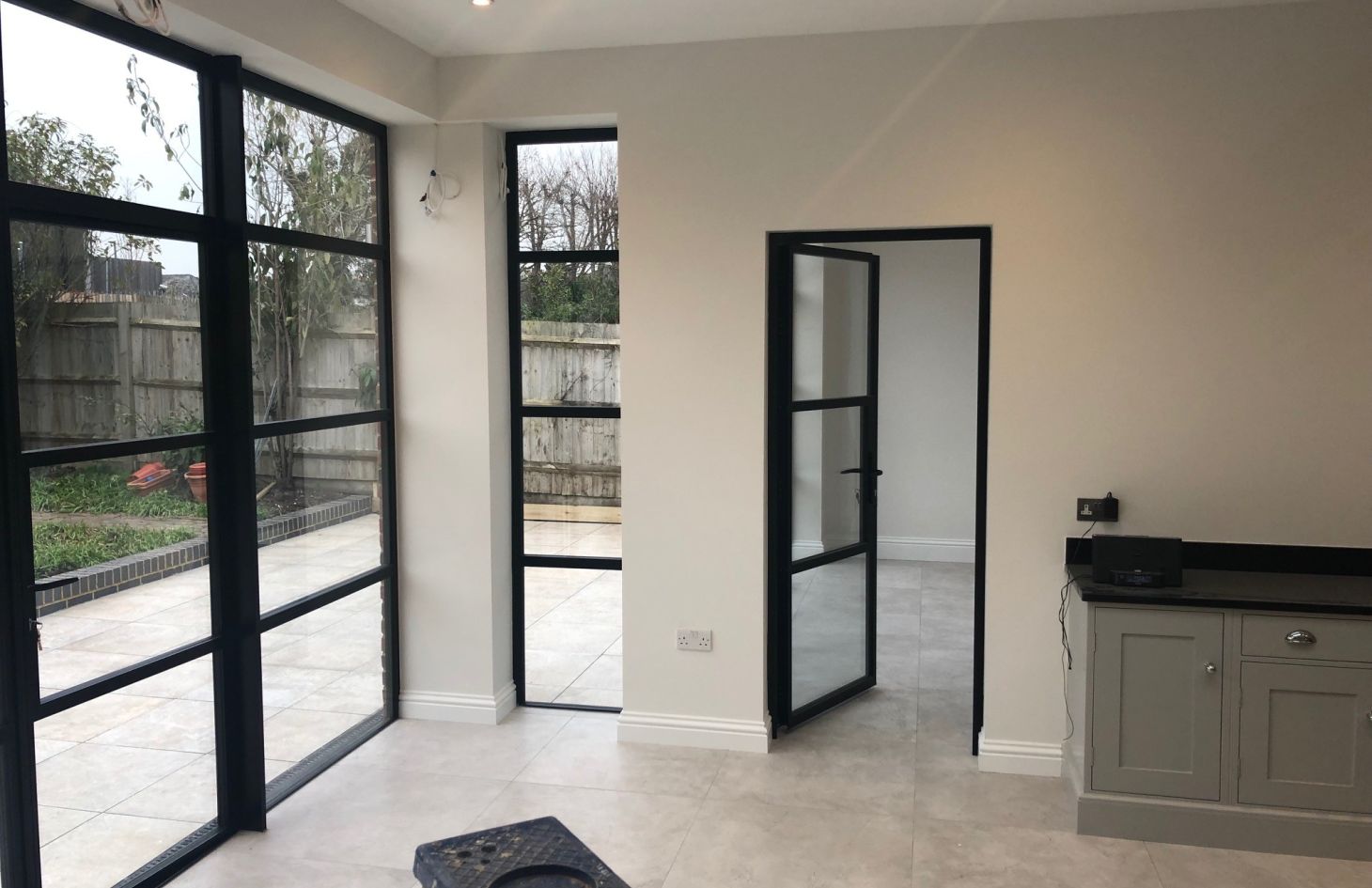

  • Internal Heritage Single Door with Goal Post Frame

    Internal Heritage Single Door with Goal Post Frame

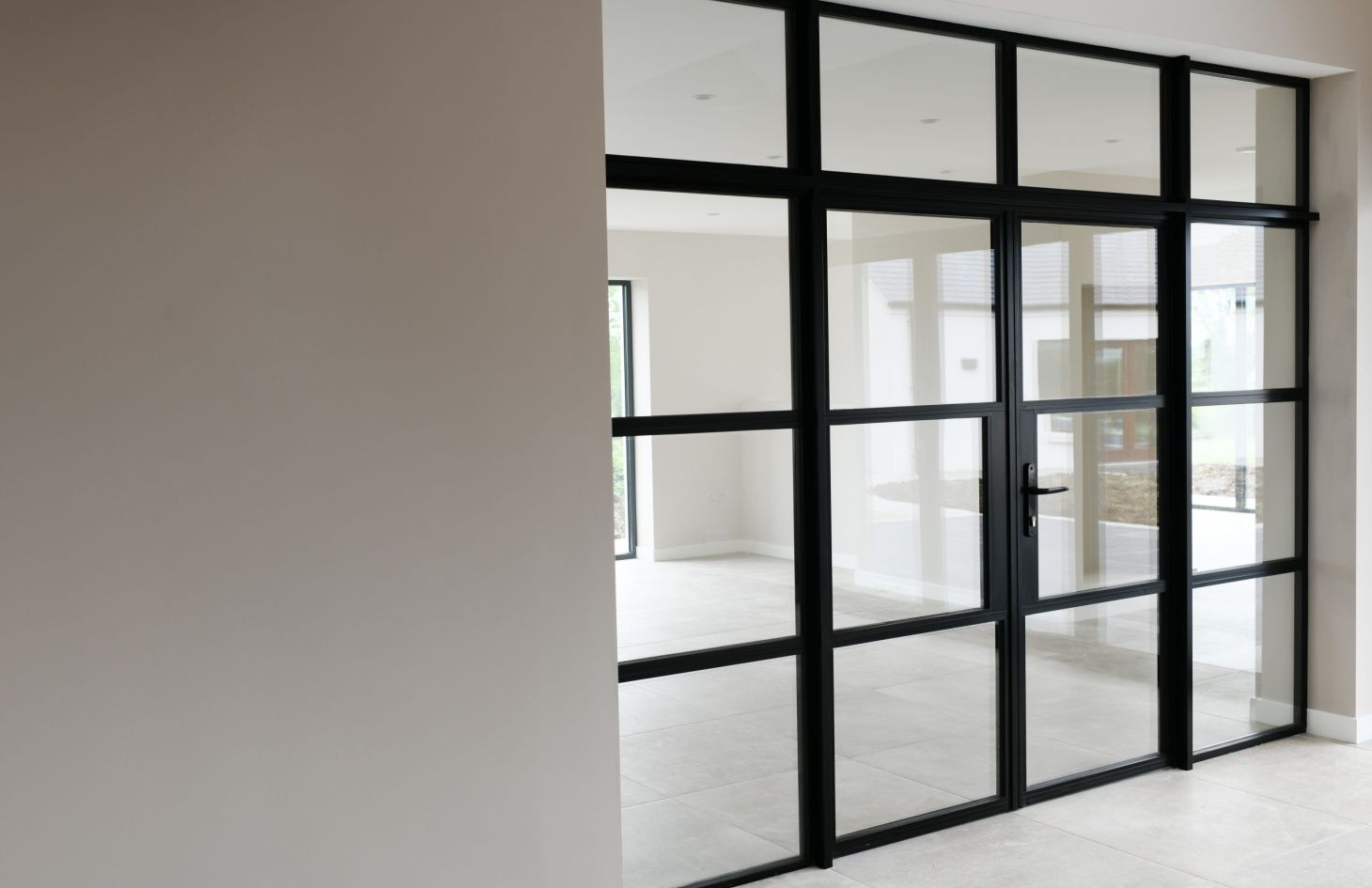

  • Alitherm Heritage Internal Double Doors with no threshold

    Alitherm Heritage Internal Double Doors

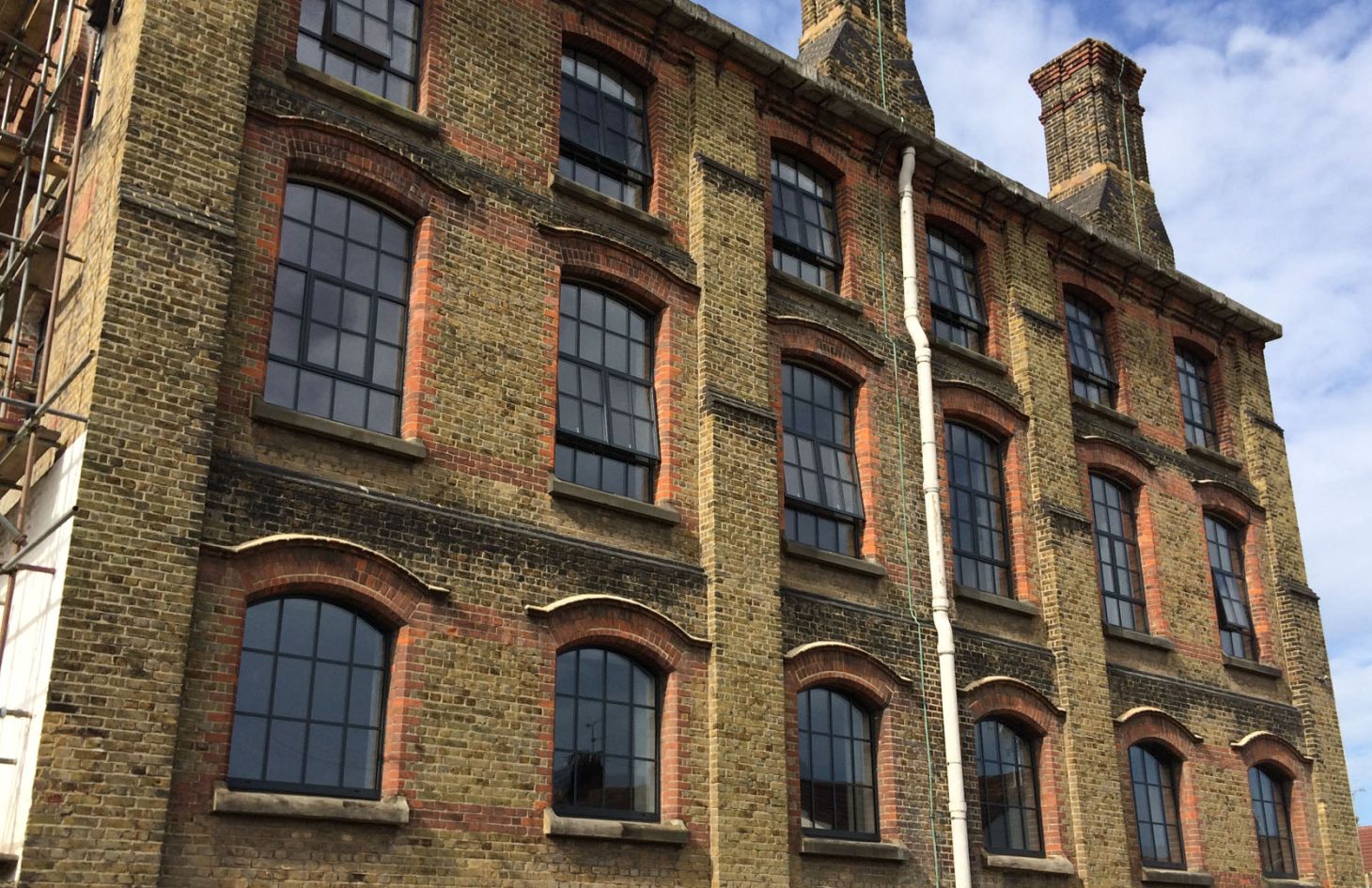

  • Alitherm Heritage Curved Head Windows

    Alitherm Heritage Curved Head Windows

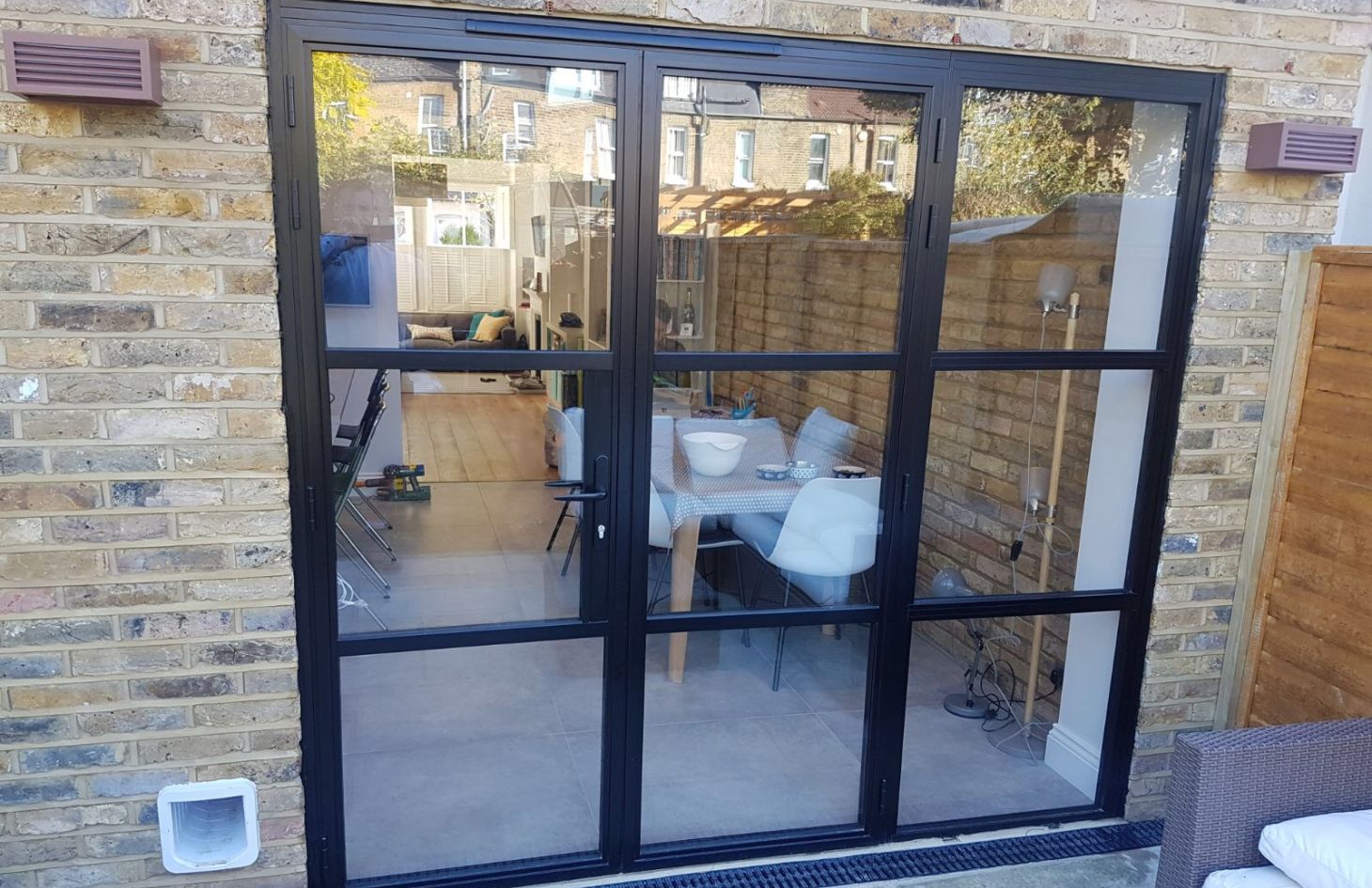

  • Aluminium Heritage Double Doors and Sidelight in Black

    Aluminium Heritage Double Doors and Sidelight

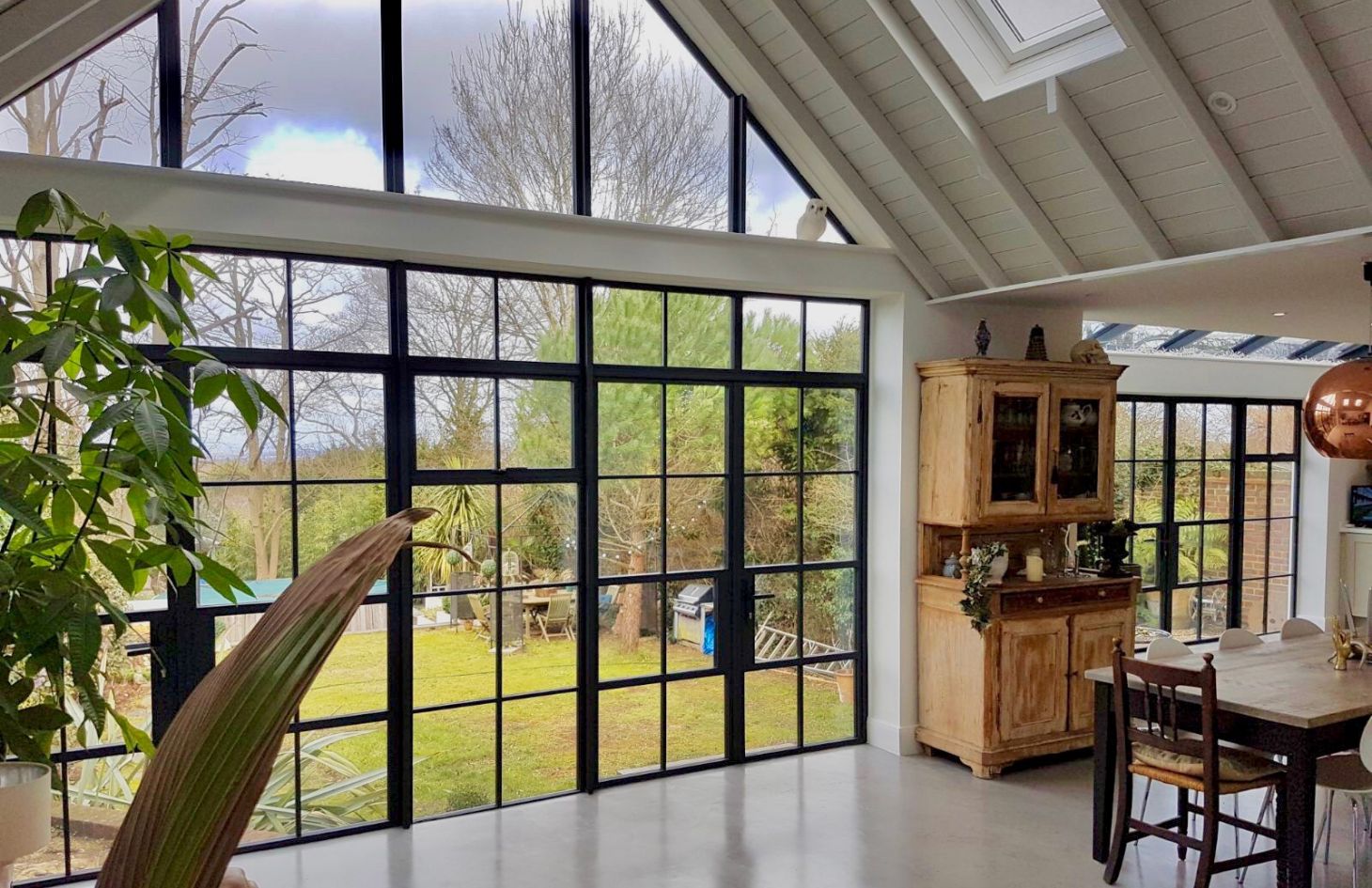

  • Aluminium Heritage Double Door Screen

    Aluminium Heritage Double Door Screen

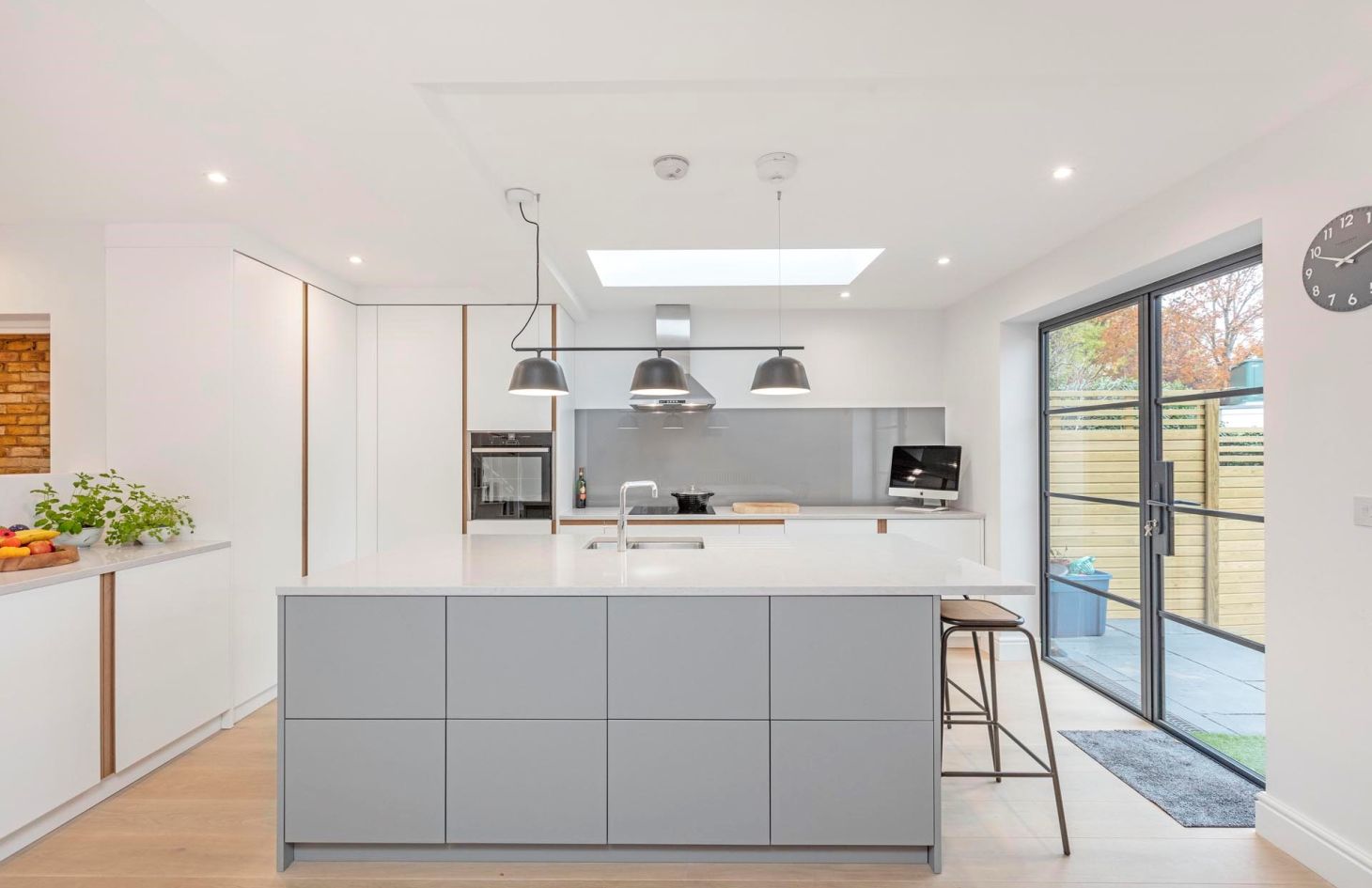

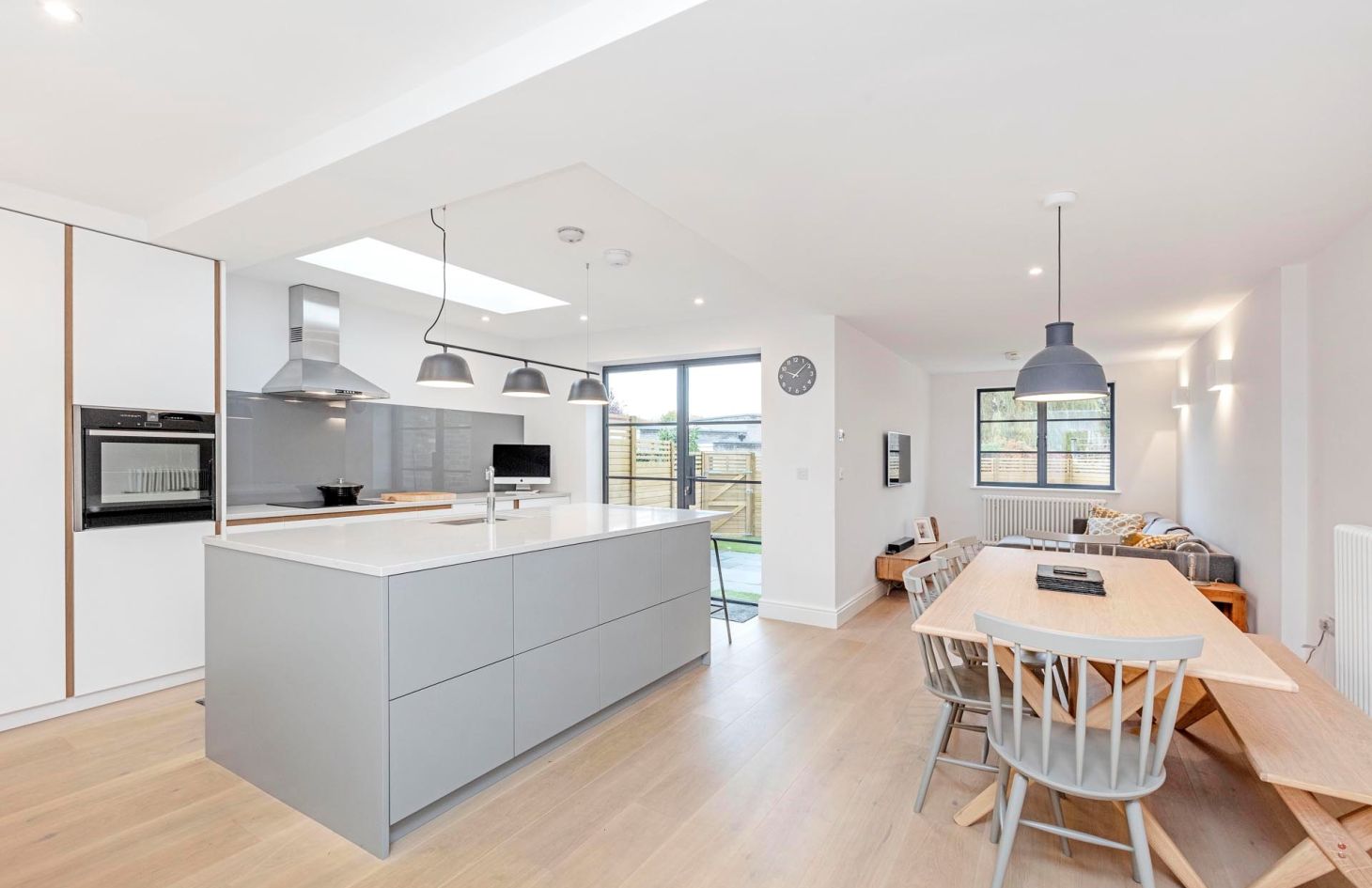

  • Grey Heritage Kitchen Doors and Windows

  • Floating Lockblock Heritage Aluminium Doors

  • Black Heritage Curved Windows

  • Alitherm Heritage Windows

  • Black Heritage Windows

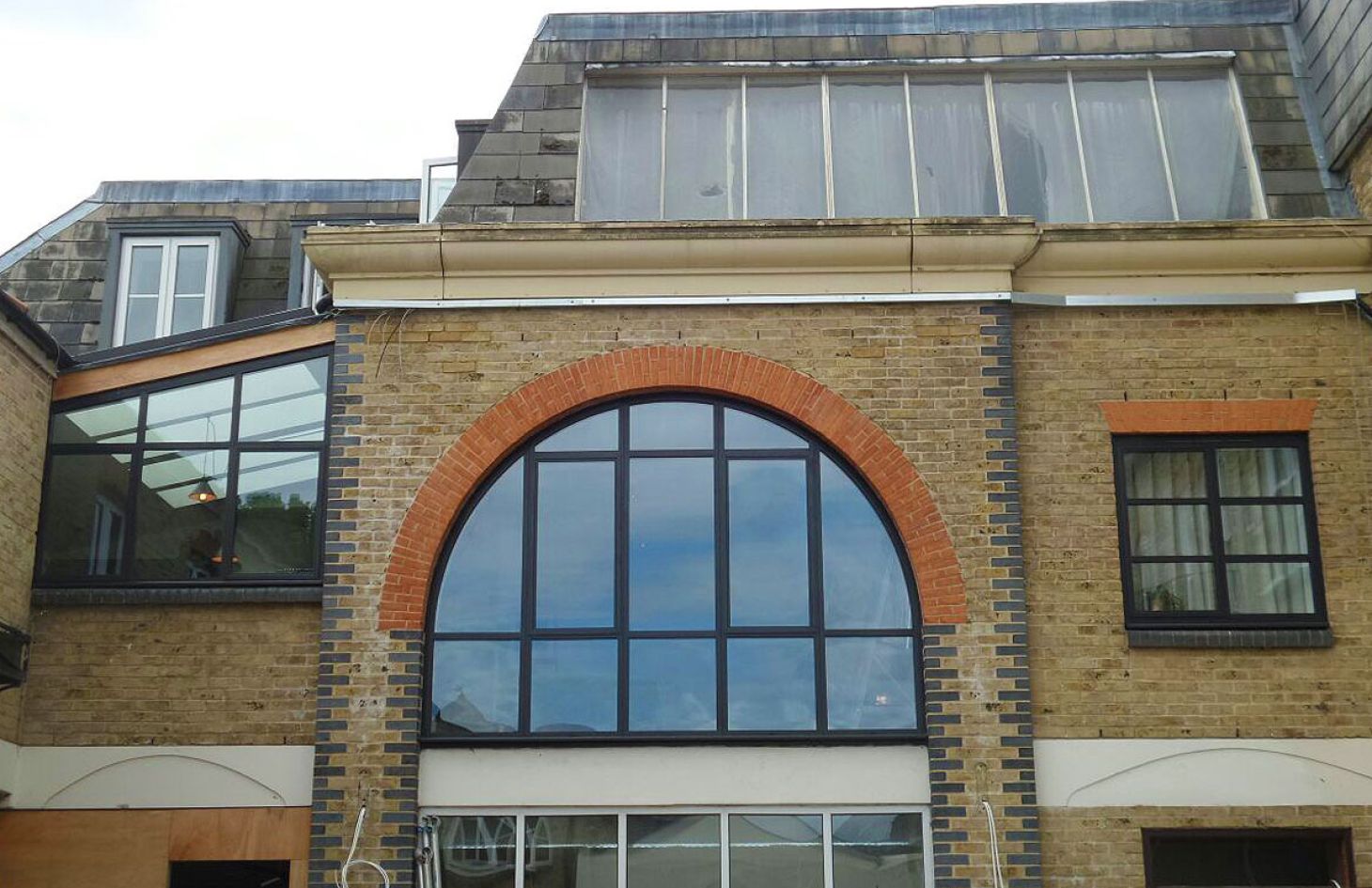

  • Black Aluminium Curved Head Window

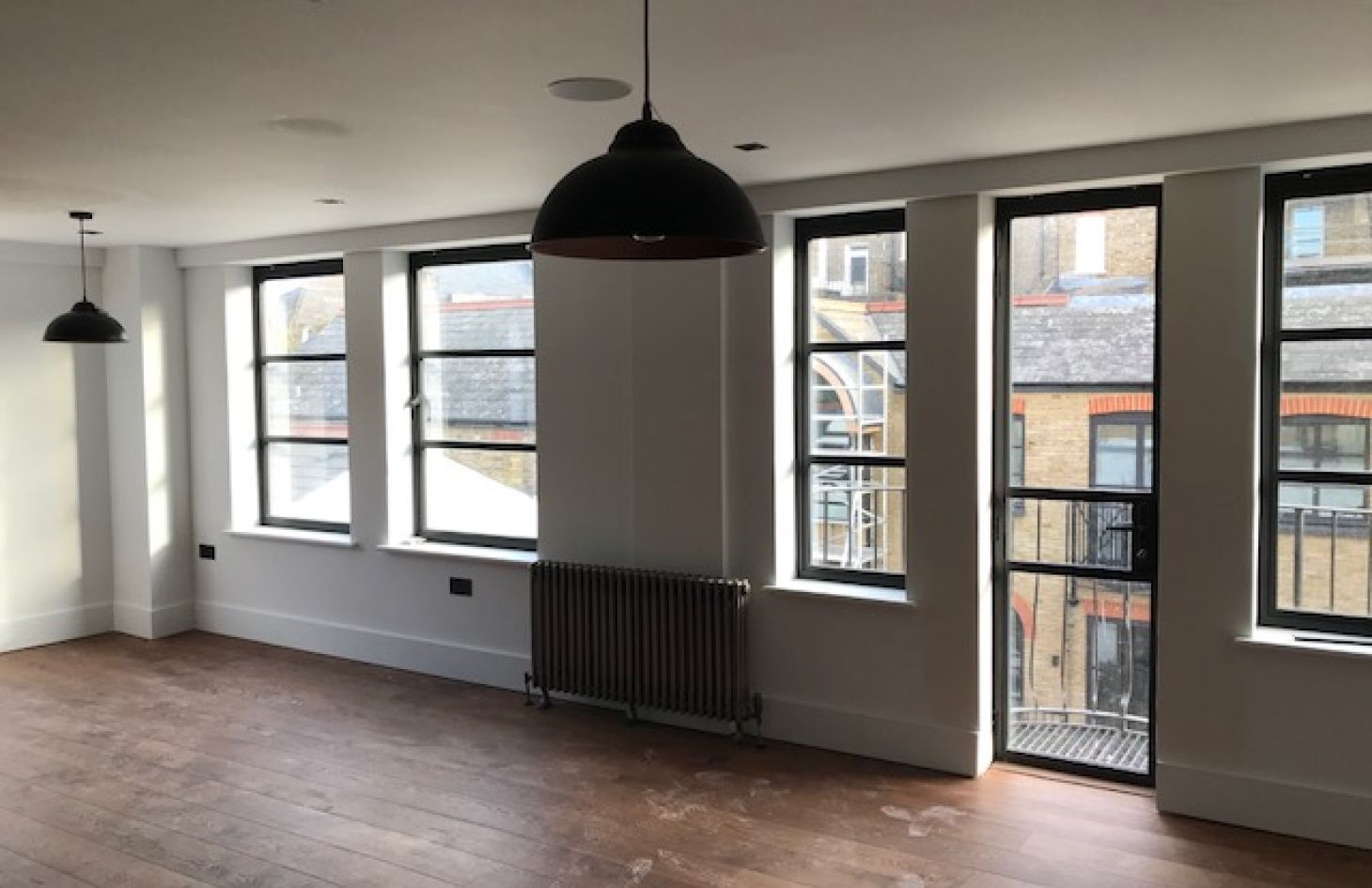

  • Black Heritage Windows

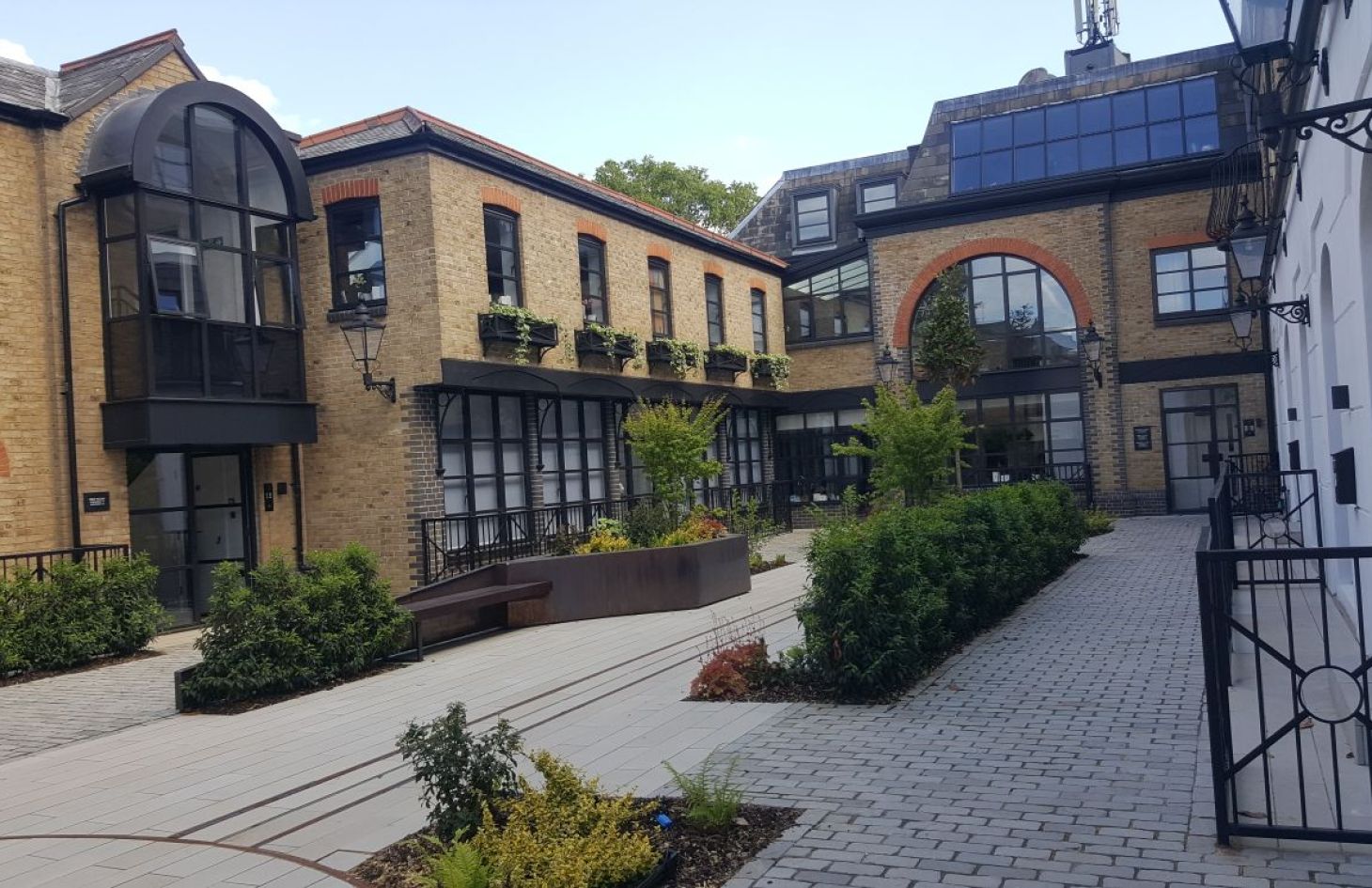

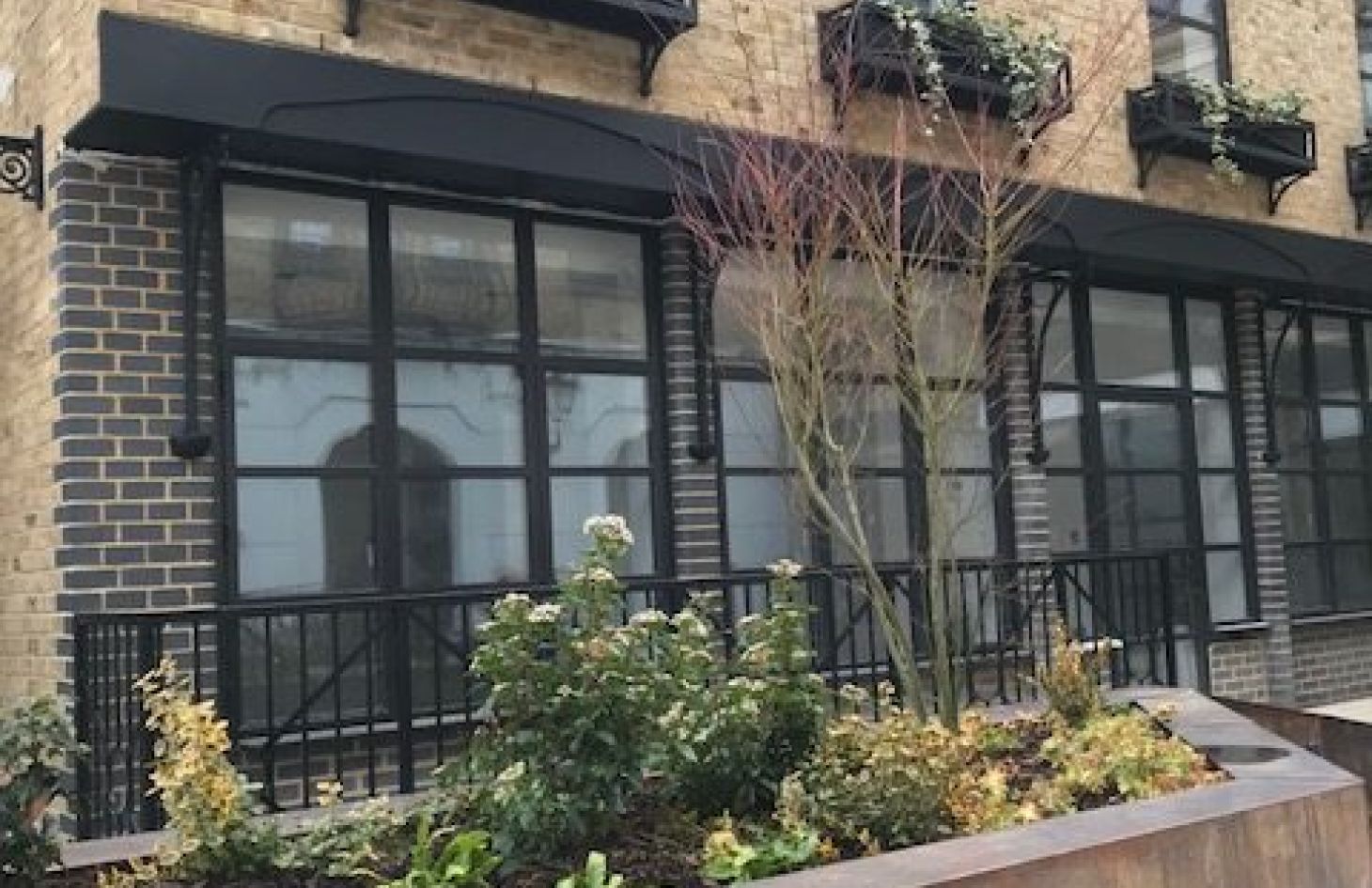

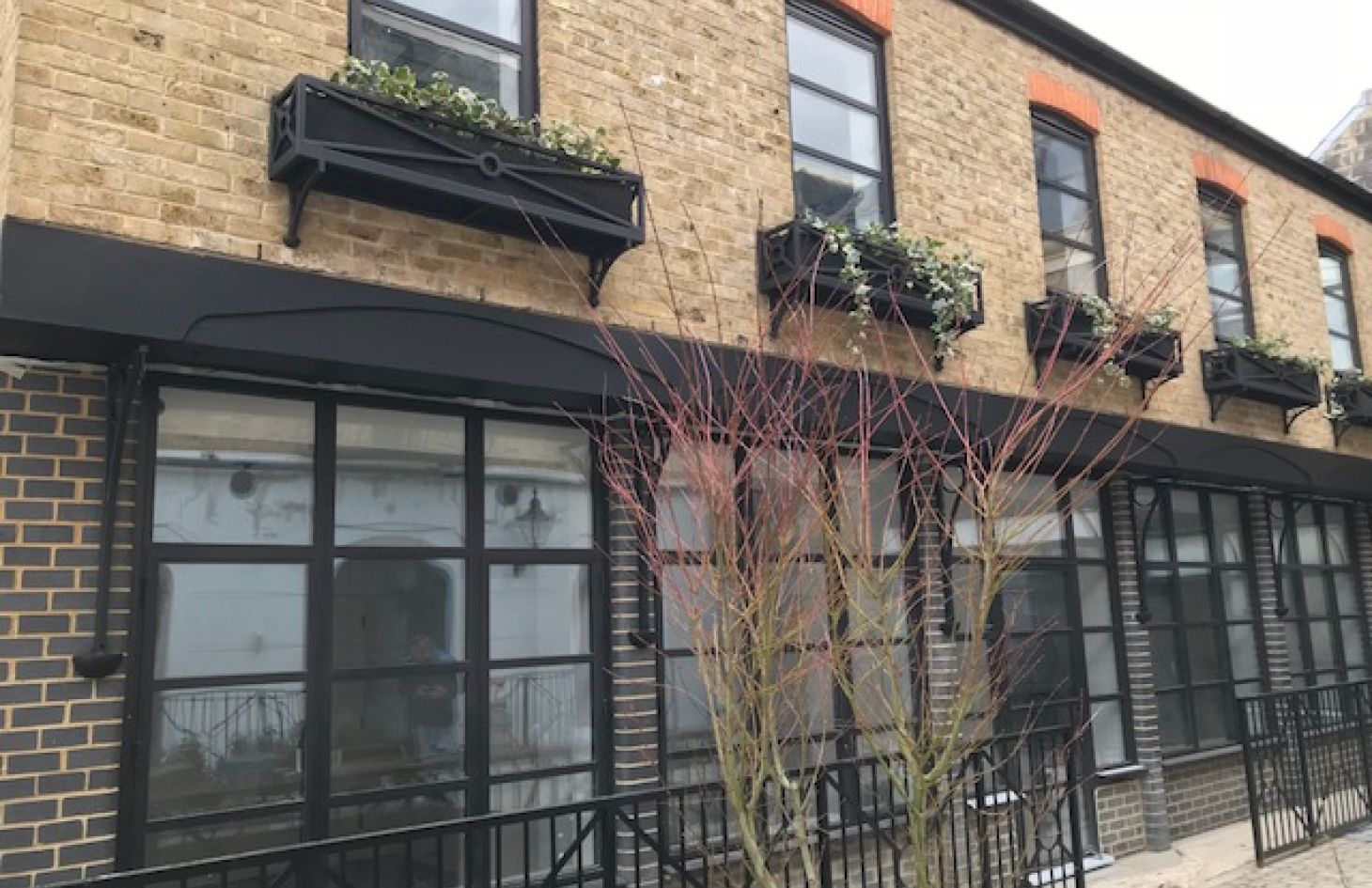

  • Black Heritage Windows at Old Town

  • Black Heritage Windows at Old Town

  • Heritage Doors

  • Heritage Bifold

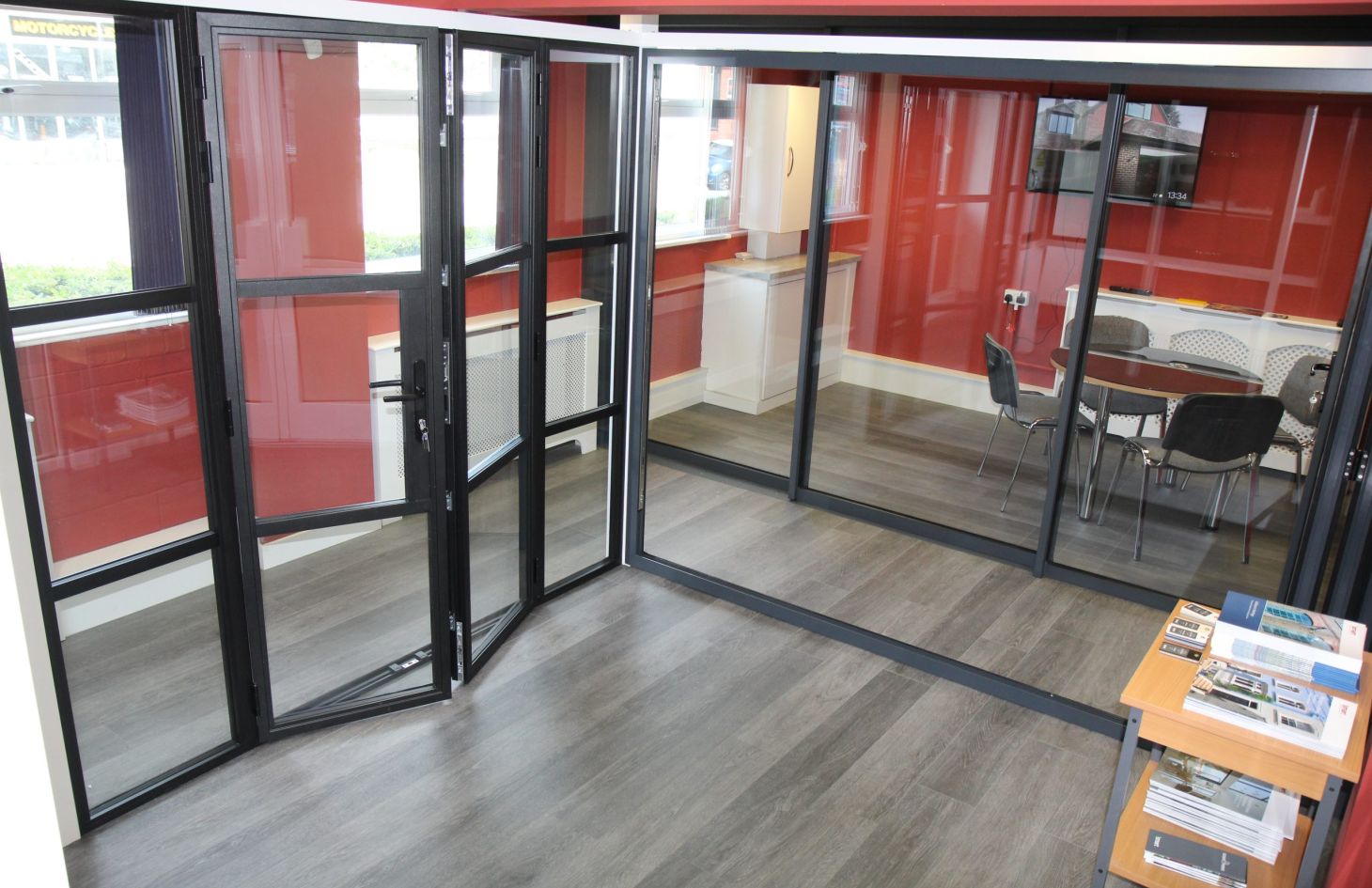

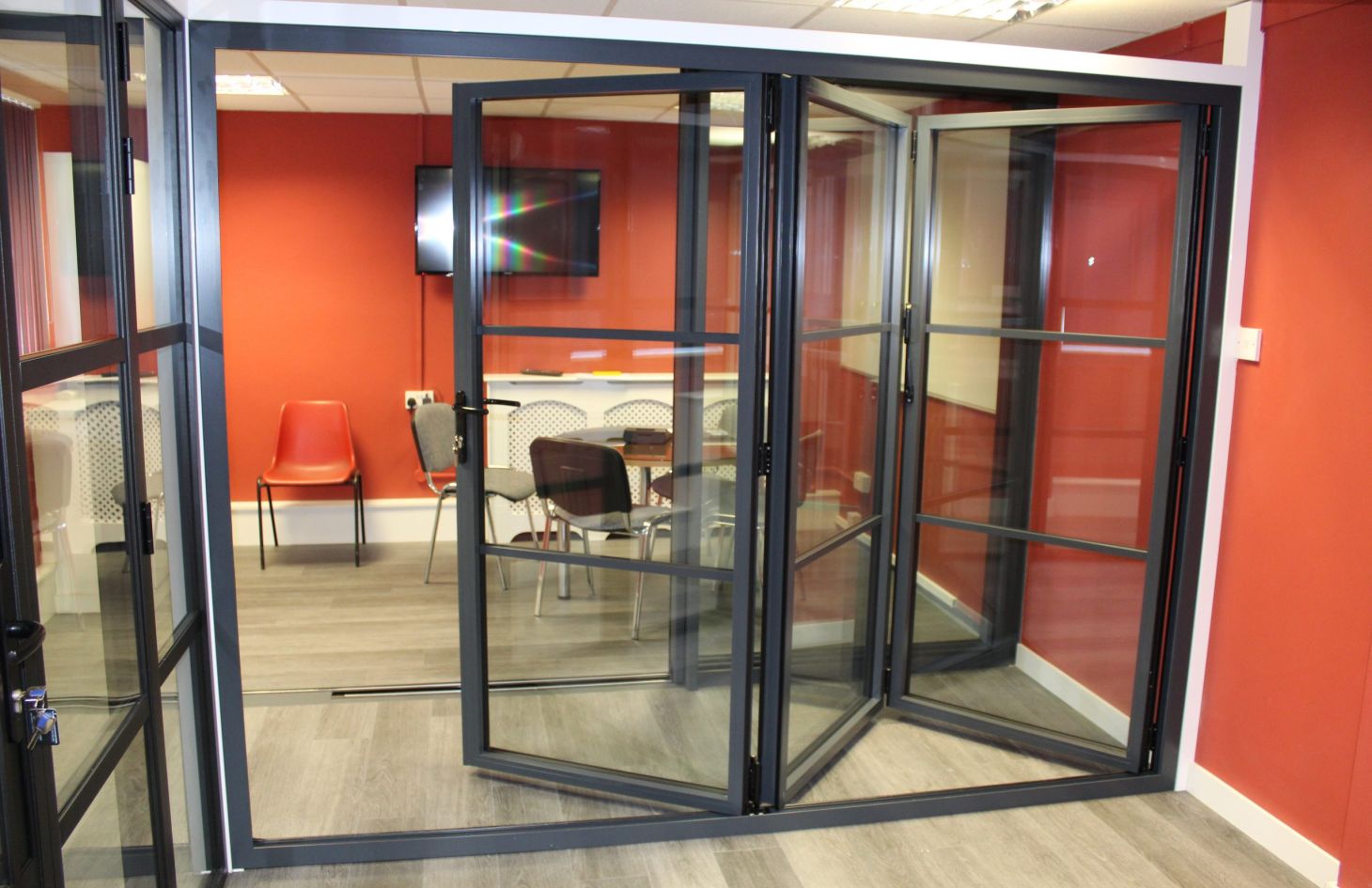

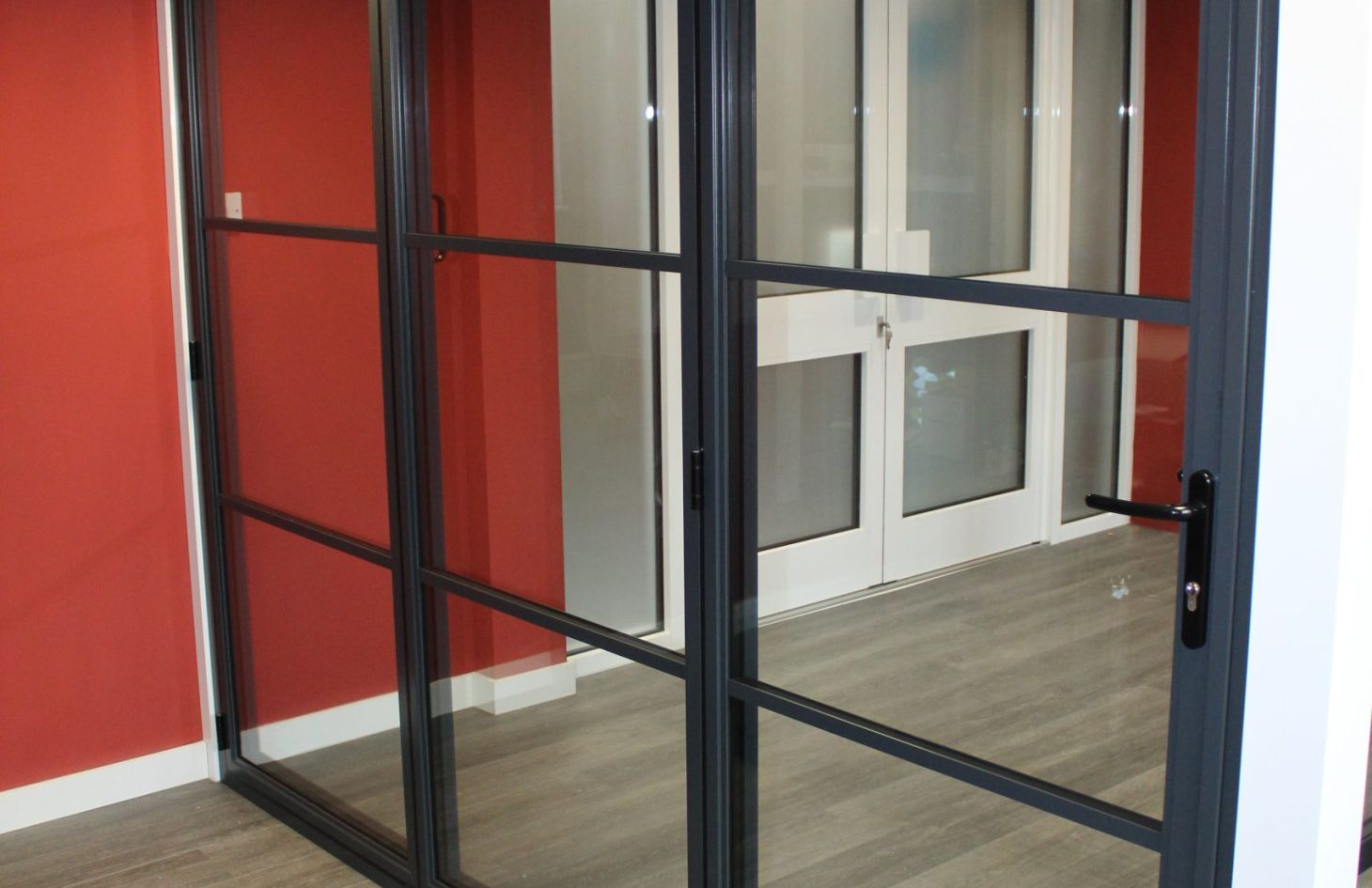

  • Grey Heritage Bifold Doors in our Showroom

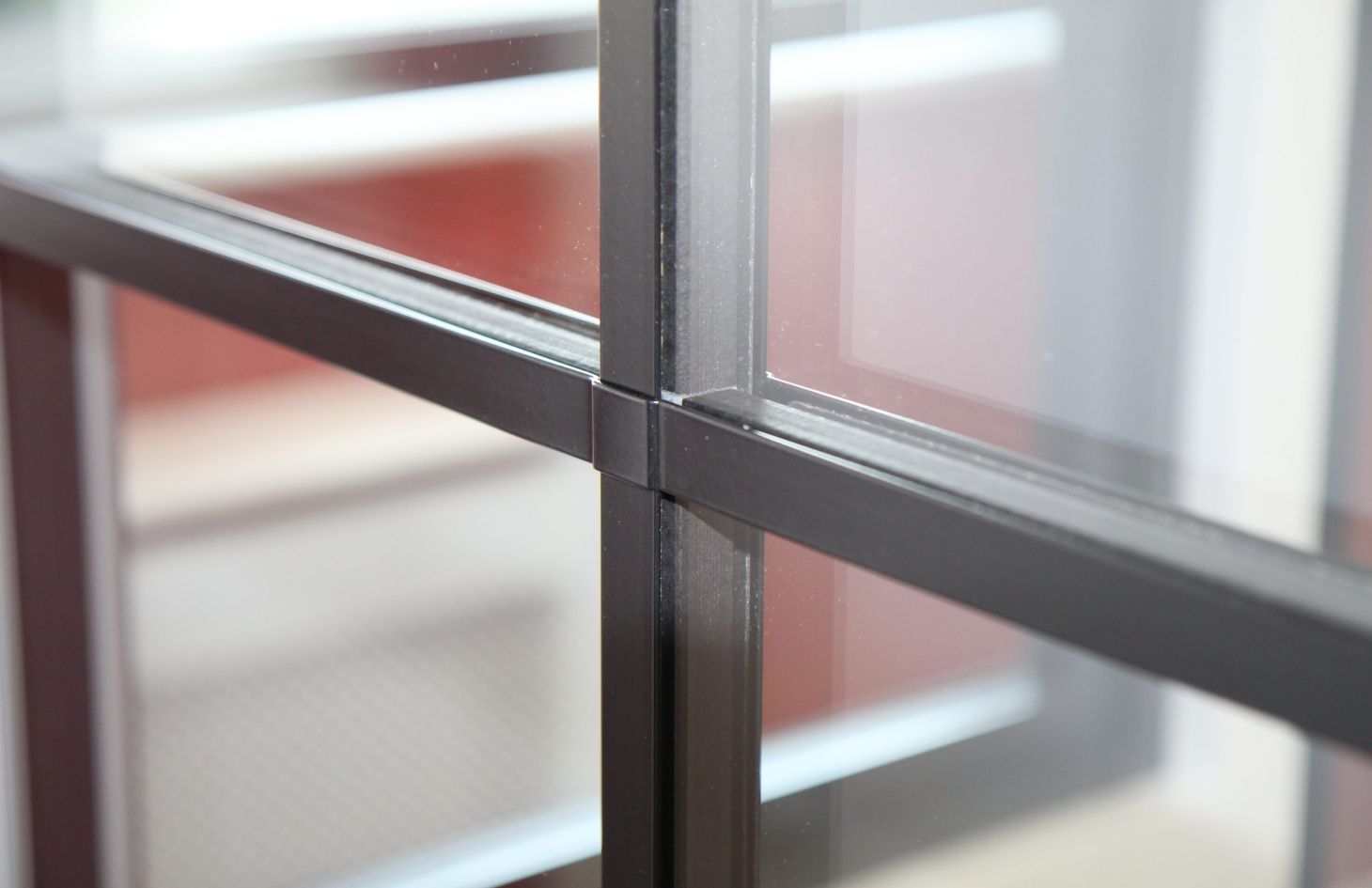

  • Heritage Bifold with 20mm Astragal Bars

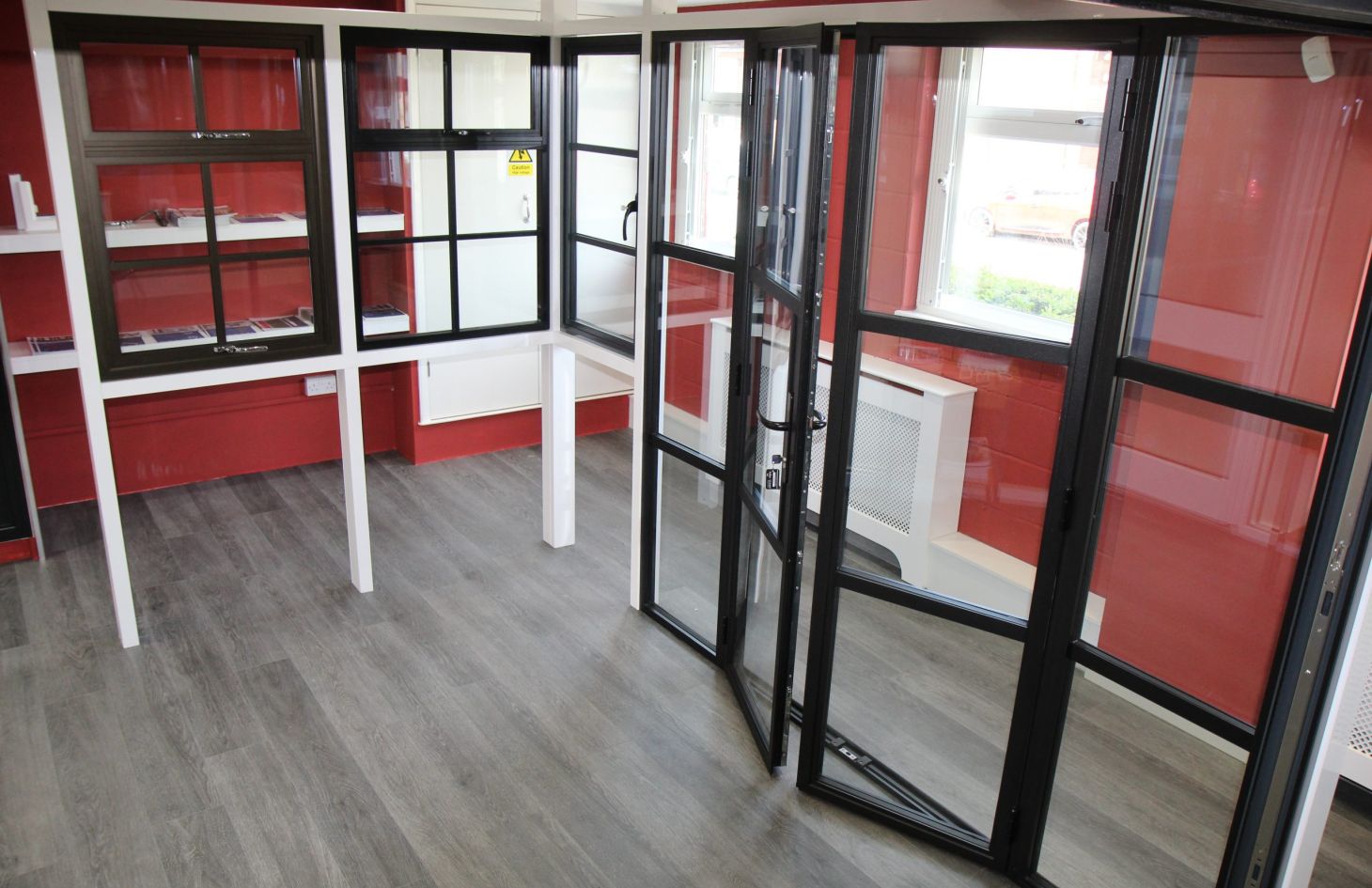

  • Showroom Heritage Doors, Bifold and Patio

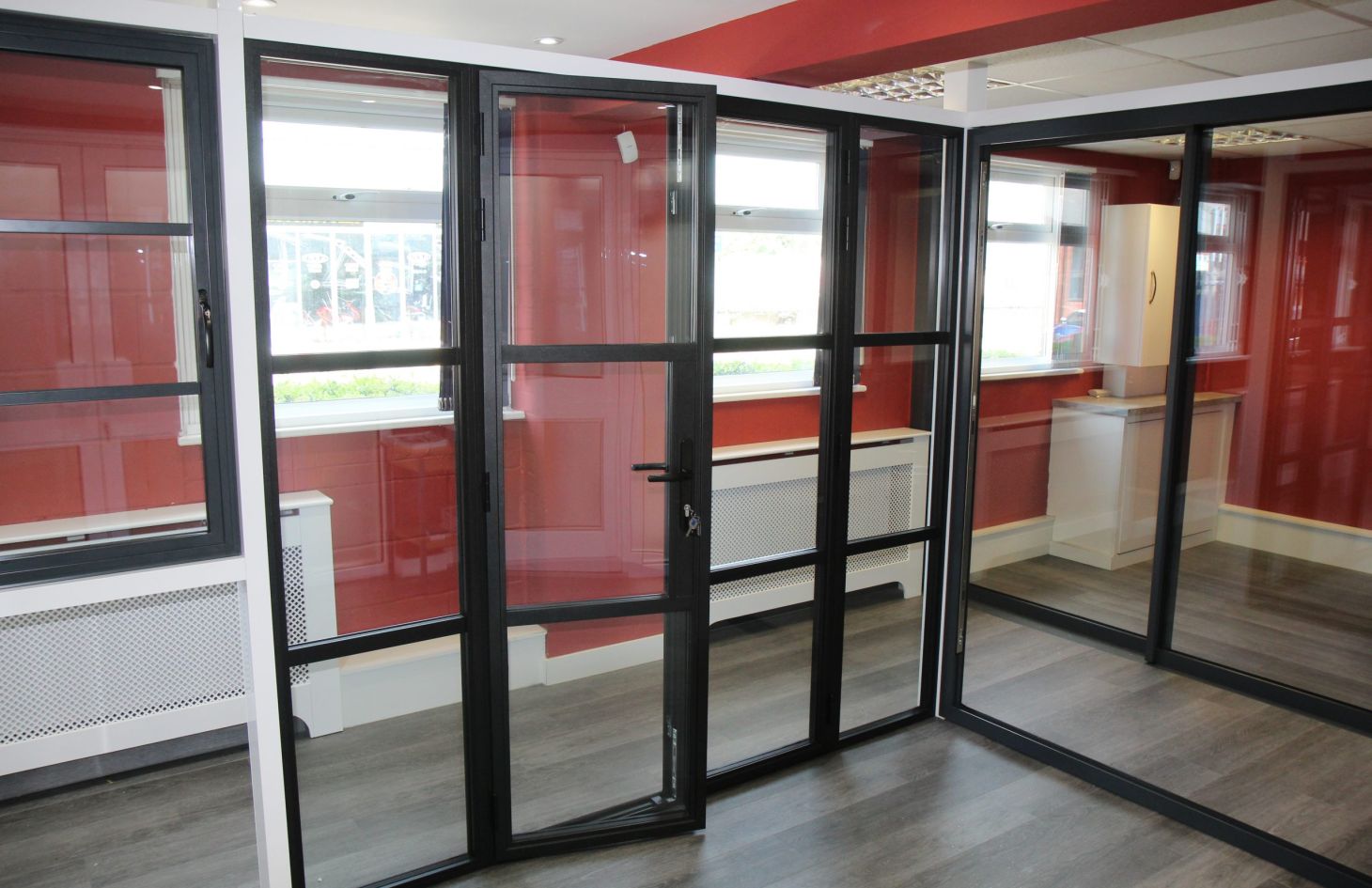

  • Showroom Heritage Doors and Windows

  • Fenestra overlap astragal bars

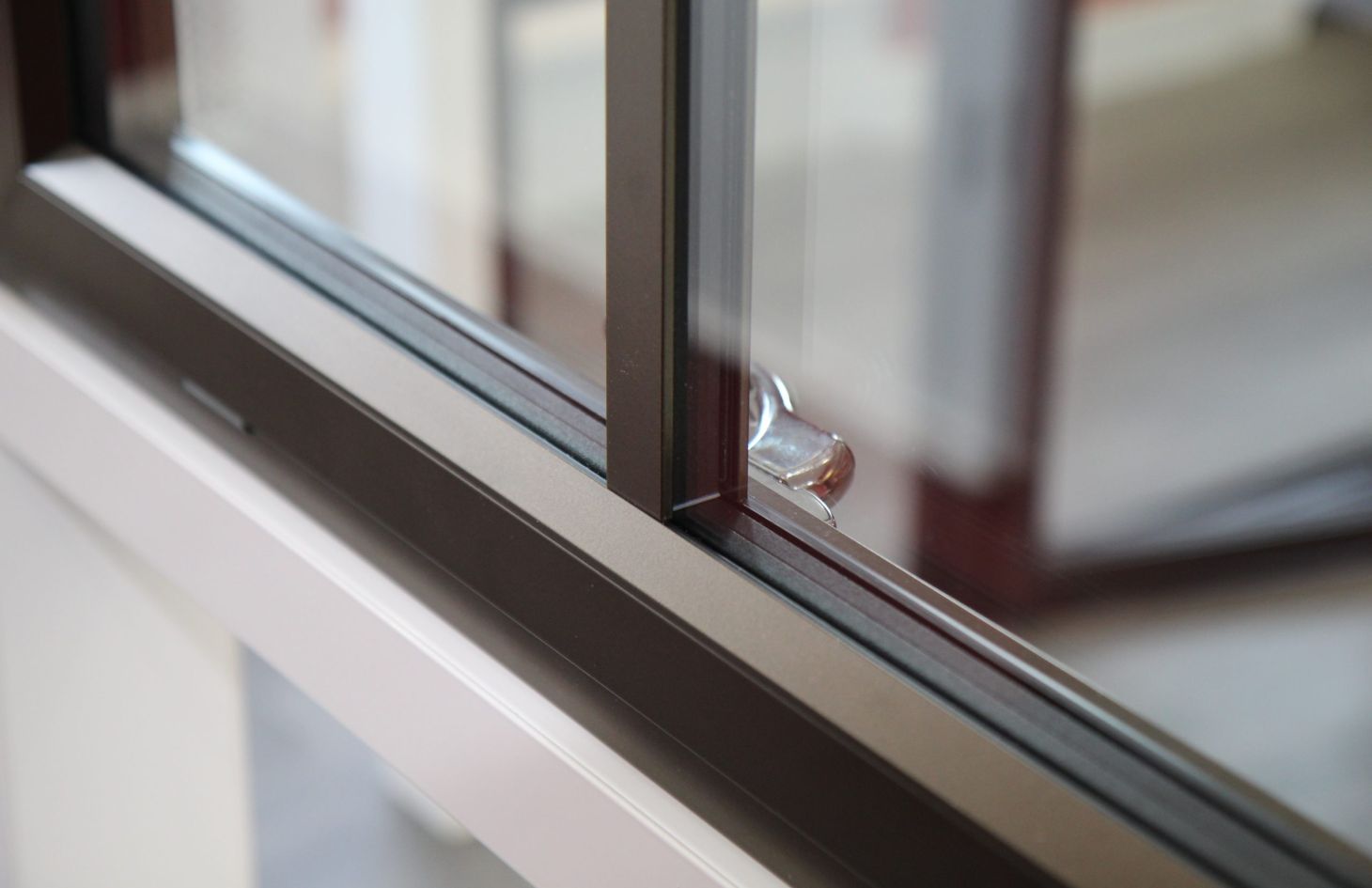

  • ALC002 Bronze Externally Beaded Heritage Window and 25mm Astragal Bar
