Visofold 1000 | Bifolding Doors

  • Visofold can be used in domestic applications as either an alternative to sliding doors, or to open up an entire wall as part of a conservatory; the system will make the most of a beautiful view or bring a garden into the home.

    Used commercially in a bar, café or restaurant, Visofold can create a glazed screen that allows in the maximum ingress of light in inclement weather, and will also easily glide to open up an entire wall in warmer weather. Visofold doors offer a choice of opening configurations to suit any application. Choose to fold the sashes internally or externally, place the opening at the side so the sashes all fold one way, at one end, to create a single entrance door for easy access, or in the middle to give the option of a double door.

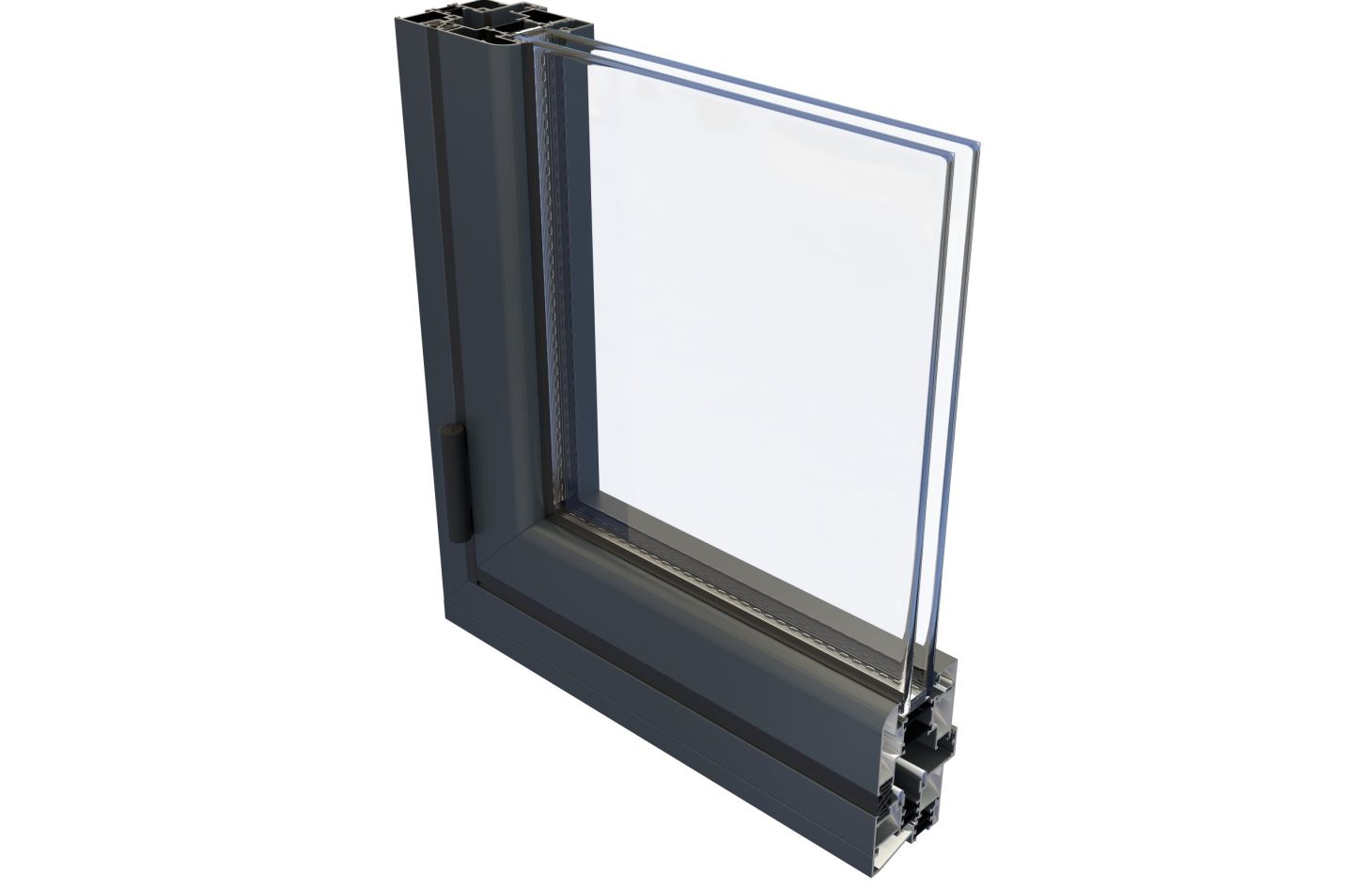

    All Visofold profiles feature a polyamide thermal break that enhances the thermal performance of the profile and improves the overall U-Value. Profiles feature EPDM high quality gaskets and weather brushes to aid weather resistance. Visofold complies with the requirements of Building Regulations Document L 2010. Security is assured by multi-point lock mechanisms on main opening sashes, and shoot-bolt locking on floating mullions.

    All Visofold doors have the option of either low thresholds for unimpeded, easy access, or rebated thresholds that offer improved weather resistance. Visofold doors are available in a choice of standard or non-standard colours, including metallic, wood-structure, dual colour and Smart’s unique Sensations range of textured finishes.

    • Attractive, slim-line profiles offer reduced sightlines
    • Profiles available in either square or rounded edge options
    • Fabricated using mitred corners

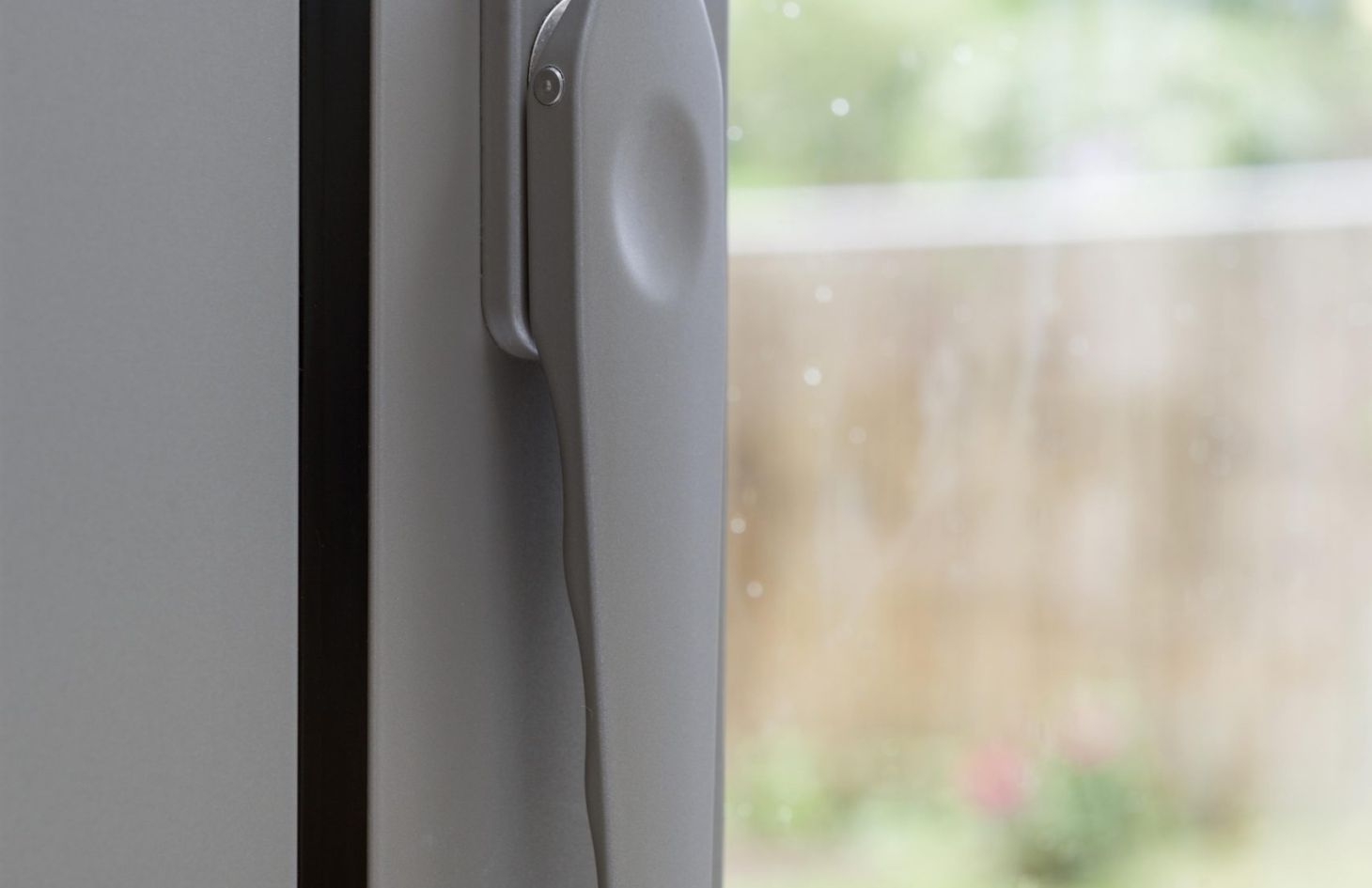

    • Lock mechanism available with domestic style ‘lift-up’ handle and an adjustable, one-piece keep
    • Manufactured using Smarts punch tooling
    Smart Systems Approved Parts

    Our Smart Visofold 1000 Bifolds are fabricated using 100% Smart System supplied and approved parts ensuring the quality, reliability and guarantee you expect.

  • U Value1.5W/m²K using 1.0 W/m²K centre pane
    AirClass 4, 600Pa
    WaterClass E, 750Pa
    WindClass 4, 1800Pa
    Document L CompliantYes
    BS 6375-1:2009Yes
    PAS 24:2012Yes
  • Fixed Max Width (mm)1200mm (per sash)
    Fixed Max Height (mm)2500mm (per sash)
    Fixed Max Weight (kg)100kg (per sash)
    Slide Folding Door Max Width (mm)1200mm (per sash)
    Slide Folding Door Max Height (mm)2500mm (per sash)
    Slide Folding Door Max Weight (kg)100kg
    Glazing (mm)24mm, 28mm, 32mm, 34mm, 36mm double or triple glazed units
    Frame Depth (mm)70mm
    Typical Sightlines (mm)132mm

Installation Gallery

Visofold 1000
Visofold 1000
Visofold 1000 Bifolds
Visofold 1000
Visofold 1000
Visofold 1000 Bifolds
