Alitherm 300

Windows

Overview

This versatile range of profiles can provide many solutions for residential and light commercial applications.

Traditional casement windows inspired by the elegance and styling of timber products, or contemporary style windows designed for modern homes or offices.

Product Details

  • Material
    Aluminium Polyamide
  • Dual Colour
    Yes
  • Thermally Broken
    Yes
  • NBS Available
    Yes
  • U Value
    1.5W/m²K (using correct glass unit)
  • Doc L Compliant
    Yes
  • BS6375-1:2009
    Yes
  • BS 7950:1997
    Yes
  • BS 4873
    Yes

Description

Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.

Alitherm products are available in a choice of standard or non-standard colours, including metallic, dual colour, Smart’s Sensations textured, and Alchemy anodised effect finishes.

  • British Standard Kitemarked system KM 81580 KM 81543
  • The system features an extended polyamide thermal break which improves the overall U Value of the profile, allowing Alitherm 300 to achieve a Window Energy ‘A’ Rating when used in conjunction with the correct double or triple glazed unit
  • The system is suitable for both internally or externally beaded, side or top hung open out windows
  • Profiles have the option of either ovolo, chamfered or square edges
  • Frame options for both standard and slim-line stays
  • Option of either multi-point or cockspur locking handles

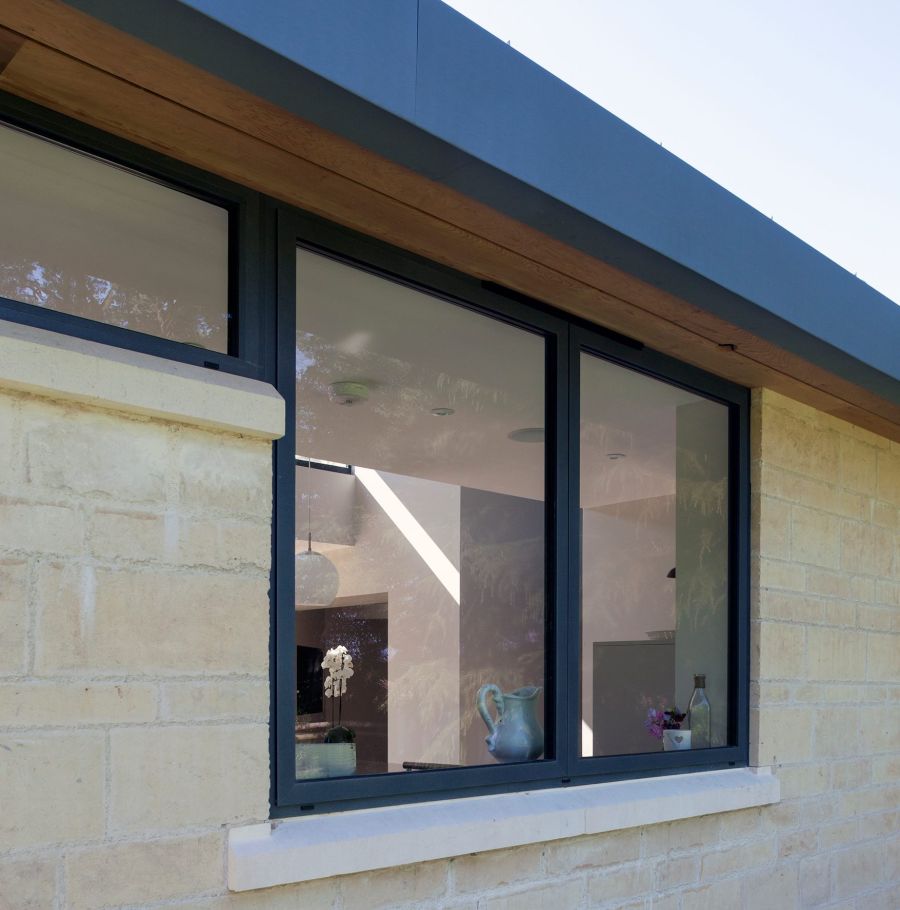

Alitherm 300 Aluminium Window
Alitherm 300 Aluminium Window in Shut Position

Alitherm 300 Aluminium Window

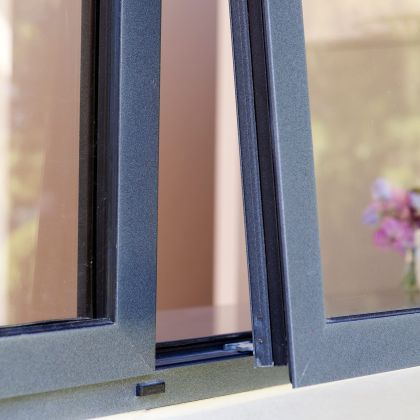

Alitherm 300 Aluminium Window in Open Position

Alitherm 300 Aluminium Window

Dimensions

  • Side Hung Max Width

    700mm

  • Side Hung Max Height

    1400mm

  • Top Hung Max Width

    1400mm

  • Top Hung Max Height

    1300mm

  • Glazing

    24mm, 28mm, 32mm & 36mm double or triple glazed units

  • Frame Depth (mm)

    53mm or 70mm

  • Internal View

  • External View

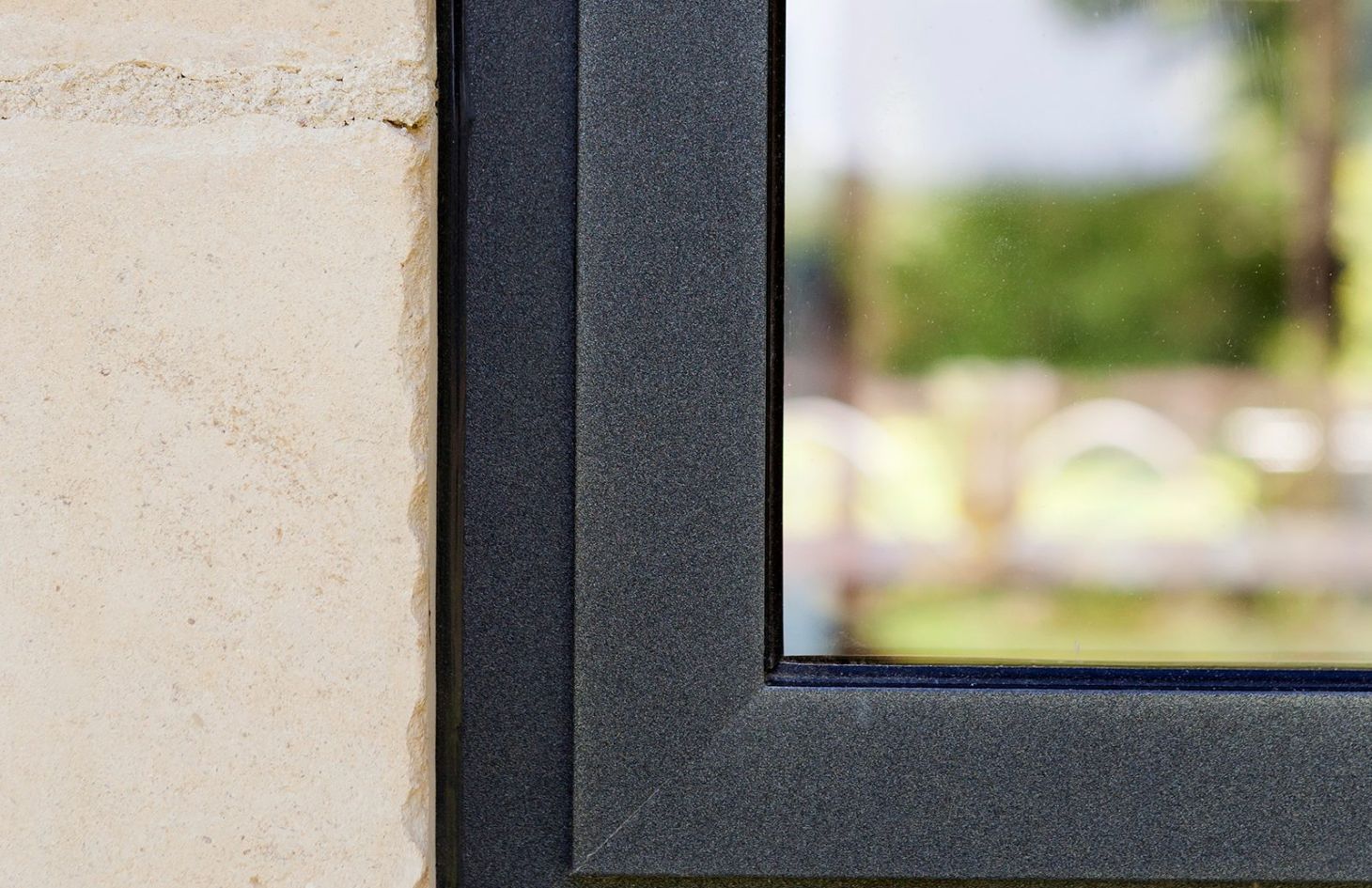

  • Slim Sightlines

  • Alitherm 300 Window

  • Alitherm 300 Opening Top Hung Sash

  • Alitherm 300 Opening Top Hung Sash
